An Epson I3200 printhead costs around $1,500. A Kyocera KJ4 head is over $3,000. The wrong ink can destroy either one in under six months — and no supplier's "compatible with all printheads" claim on a website will protect you.
Every printhead has a narrow operating window: a specific viscosity range it can jet reliably, a surface tension range that produces clean droplets, and a maximum particle size beyond which nozzles begin to clog. An ink formulated for one printhead family will not necessarily work in another — even if both are used for sublimation printing.
This guide explains what each major printhead platform actually requires from its ink. It also gives you the questions to ask any supplier before trusting their "compatible" claim. Because when the wrong ink destroys a printhead, it does not fail on day one. It fails gradually: a nozzle drops out in week three, two more in week six, and by month four you are replacing a head that should have lasted two years.
In This Guide
| 1. The Physics of Compatibility | 5. Cross-Platform Comparison |
| 2. Epson Micro Piezo Printheads | 6. How to Verify Compatibility |
| 3. Kyocera KJ4 Series | 7. The Test Bench Question |
| 4. Ricoh GEN5 / GEN6 | 8. FAQ |
Printhead compatibility is not a yes-or-no question. It is a question of three physical parameters. If your ink supplier cannot tell you the values for all three — for your specific printhead model — they have not tested it.
| Parameter | What It Controls | What Happens When It Is Wrong |
|---|---|---|
| Viscosity Measured in mPa·s (centipoise) at jetting temperature | The ink's resistance to flow — determines whether the printhead's piezoelectric actuator can push it through the nozzle at the required frequency | Too high: missing nozzles, poor drop ejection. Too low: satellite droplets, fuzzy edges, ink leakage from the nozzle plate. |
| Surface Tension Measured in mN/m (dynes/cm) | Drop formation at the nozzle — determines whether the droplet breaks cleanly from the nozzle plate and lands as a perfect circle | Too high: droplets will not form at the firing frequency — missing dots. Too low: ink wets the nozzle plate, causing drop placement errors and eventually nozzle plate flooding. |
| Particle Size Distribution D50 and D90 values in nanometers | The size of solid dye particles suspended in the ink — determines whether particles can pass through the nozzle without accumulating | D90 above the nozzle's tolerance: gradual particle buildup in the nozzle channel. This is the most expensive failure mode — it takes weeks or months to appear, and by the time you see missing nozzles, the printhead is already damaged. |
An Epson DX5 head jets best at 3–5 mPa·s. A Kyocera KJ4 head needs 5–7 mPa·s. A Ricoh GEN5 requires 7–10 mPa·s. A single ink formulation cannot be optimal for all three. If a supplier claims their ink works equally well in every printhead, they are either diluting it to a middle ground (suboptimal for all) or they have not tested it. Ask for the viscosity specification — the number will tell you which head it was actually designed for.
Epson's Micro Piezo printheads are the most widely used in the sublimation industry — from desktop converted EcoTank printers to industrial SureColor F-series production machines. They span multiple generations but share a common technology: a piezoelectric element bends to push ink through the nozzle. This mechanism is sensitive to viscosity.
| Printhead Model | Common Printer Series | Viscosity Range | Surface Tension | Nozzle Diameter |
|---|---|---|---|---|
| Epson DX5 / DX7 | Older-generation large-format, converted desktop printers | 3.0–5.0 mPa·s | 24–28 mN/m | ~20 µm |
| Epson I3200 / I1600 | SureColor F-series, industrial textile printers | 3.0–5.0 mPa·s | 24–28 mN/m | ~20 µm |
| Epson S3200 / F1440 | High-speed industrial, roll-to-roll textile | 3.5–5.5 mPa·s | 24–28 mN/m | ~18 µm |
What Epson heads are sensitive to:
Particle size. Epson's Micro Piezo nozzles are approximately 20 microns in diameter. As a rule of thumb, the largest particle in the ink (D90) should be no more than 1/100th of the nozzle diameter — around 200 nm. Particles above 250 nm D90 will begin to accumulate in the nozzle channel over weeks of continuous printing.
Viscosity drift with temperature. Epson heads operate at a controlled temperature, but the ink's viscosity changes with ambient conditions. An ink that measures 4.0 mPa·s at 25°C may drop to 3.0 mPa·s at 30°C — which is within spec, but at the lower boundary. A supplier should provide a viscosity-temperature curve from 20–40°C, not a single number.
Sedimentation. Because Epson heads are often used in printers that sit idle overnight or over weekends, the ink must resist pigment settling. A properly formulated sublimation ink for Epson heads will show no measurable sedimentation after 72 hours of idle time — and recover full nozzle check within one cleaning cycle.
"Can you provide the viscosity-temperature curve from 20–40°C, the particle size distribution (D50 and D90) from a laser diffraction analyzer, and the results of a 72-hour idle test on an I3200 head?" A manufacturer that has tested on Epson heads can answer all three. A supplier that has not will deflect.
Kyocera KJ4 printheads are the standard for high-speed industrial textile printing. They fire at higher frequencies than Epson heads, use larger ink droplets, and require higher-viscosity ink to maintain stable jetting at production speeds. They are also significantly more expensive — a single KJ4 head costs $3,000+, making ink compatibility a financial decision, not just a technical one.
| Printhead Model | Common Printer Series | Viscosity Range | Surface Tension | Nozzle Diameter |
|---|---|---|---|---|
| Kyocera KJ4A / KJ4B | MS, Reggiani, EFI Reggiani industrial printers | 5.0–7.0 mPa·s | 28–32 mN/m | ~26 µm |
What Kyocera heads are sensitive to:
Higher viscosity requirement. Kyocera heads need thicker ink to maintain droplet integrity at their higher jetting frequencies. An ink formulated for Epson (3–5 mPa·s) will be too thin for a Kyocera head — droplets will not form cleanly, resulting in satellite spray and fuzzy print edges at production speed.
Grayscale performance. Kyocera heads use variable dot technology — each nozzle can produce multiple droplet sizes. The ink must maintain stable viscosity across the full range of firing waveforms. If viscosity shifts under different firing conditions, the smallest dots become inconsistent, and fine detail in gradients and skin tones is lost.
Sedimentation at high density. Industrial Kyocera printers often run 24-hour shifts. The ink must resist sedimentation not just during idle periods, but during continuous recirculation. A properly formulated Kyocera-compatible ink passes a 500-hour continuous circulation test with no measurable change in particle size distribution.
"Can you show me grayscale consistency data across all dot sizes — from smallest to largest — over a 500-hour continuous run on a KJ4B head? And what is the D90 particle size after 500 hours of recirculation?" If the supplier does not know what grayscale consistency testing is, they have not tested on Kyocera heads.
Ricoh GEN5 and GEN6 printheads occupy the middle ground between Epson and Kyocera — higher viscosity than Epson, with finer droplet control than Kyocera. They are common in mid-to-high-end sublimation printers and are prized for their reliability and wide ink compatibility window.
| Printhead Model | Common Printer Series | Viscosity Range | Surface Tension | Nozzle Diameter |
|---|---|---|---|---|
| Ricoh GEN5 | Mimaki, Mutoh, Roland sublimation printers | 7.0–10.0 mPa·s | 26–30 mN/m | ~25 µm |
| Ricoh GEN6 | Newer-generation industrial textile printers | 7.0–10.0 mPa·s | 26–30 mN/m | ~20 µm |
What Ricoh heads are sensitive to:

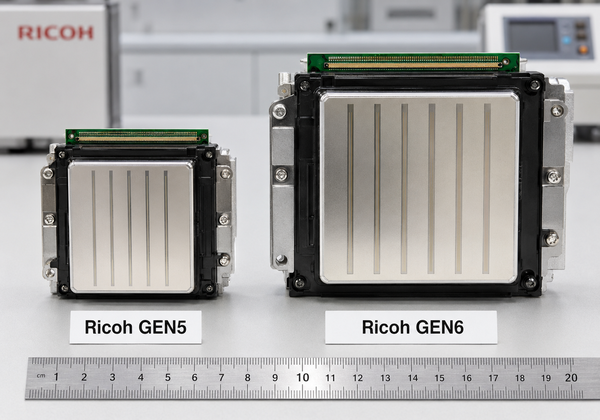

The GEN6 particle size challenge. The GEN6 has a smaller nozzle diameter (~20 µm) than the GEN5 (~25 µm), making it more sensitive to particle size. An ink that runs perfectly in a GEN5 head may clog a GEN6 head within weeks if the D90 particle size exceeds 200 nm. The GEN6 upgrade path requires a corresponding ink filtration upgrade — but many suppliers sell the same ink for both heads without retesting.
pH stability. Ricoh heads use a stainless steel nozzle plate that is sensitive to pH drift. An ink that starts at pH 7.0 but drifts to pH 6.5 over three months can cause microscopic corrosion at the nozzle edge. The supplier should provide pH stability data over a 90-day accelerated aging test.
Wide viscosity tolerance — but do not exploit it. Ricoh's 7–10 mPa·s window is wider than Epson or Kyocera. Some suppliers use this as an excuse to ship ink with inconsistent viscosity because "it is still in spec." A batch that measures 7.2 mPa·s one month and 9.5 the next month is technically in range — but your color consistency will show the difference. A quality supplier controls viscosity to ±0.3 mPa·s batch-to-batch, not just "within range."
If you are upgrading from a GEN5-based printer to a GEN6, do not assume your existing ink is compatible. The GEN6 has a 20% smaller nozzle diameter. Request a GEN6-specific particle size distribution curve and a 72-hour idle test on the GEN6 head. Many print shops learn this lesson the expensive way — by replacing a GEN6 head three months after upgrading
| Parameter | Epson I3200 / DX5 | Kyocera KJ4 | Ricoh GEN5 / GEN6 |
|---|---|---|---|
| Viscosity | 3.0–5.0 mPa·s | 5.0–7.0 mPa·s | 7.0–10.0 mPa·s |
| Surface Tension | 24–28 mN/m | 28–32 mN/m | 26–30 mN/m |
| D90 Particle Size Limit | < 250 nm | < 300 nm | < 250 nm (GEN5) / < 200 nm (GEN6) |
| Idle Stability | 72 hours, < 3 missing nozzles | 500 hours continuous circulation | 72 hours, < 3 missing nozzles |
| Critical Test | Viscosity-temperature curve | Grayscale consistency | pH stability (90-day) |
| Approx. Replacement Cost | $1,200–$1,800 | $3,000–$4,000 | $2,000–$2,800 |
You do not need a laboratory to verify most of the claims in this guide. You need to ask the right questions — and know what answers to expect.
| Ask the Supplier | Acceptable Answer | Red Flag Answer |
|---|---|---|
| "What viscosity range is your ink formulated for — and at what temperature?" | A specific range (e.g., 3.5–4.5 mPa·s at 25°C) with a viscosity-temperature curve | "It works with all printers" or a single number with no temperature specified |
| "Can you send me the particle size distribution curve for this batch?" | A curve from a Malvern, Horiba, or equivalent laser diffraction instrument showing both D50 and D90 | "Our ink is nano-filtered" with no data — filtration is a process, not a measurement |
| "Do you have idle test results for my printhead model — 48 or 72 hours?" | A nozzle check image before and after idle, with missing nozzle count | "Our customers never report clogging problems" |
| "What is your batch-to-batch viscosity tolerance?" | ±0.3 to ±0.5 mPa·s from target | "Our production is very consistent" with no number |
| "Can I see the surface tension measurement for this batch?" | A number with the measurement method (du Noüy ring, Wilhelmy plate, or equivalent) | "We do not measure surface tension" — this means they do not measure the second most important compatibility parameter |
An ink manufacturer can write "Epson compatible" on a bottle without ever having seen an Epson printhead. This happens more often than you would think — trading companies buy bulk ink from a factory, repackage it, and list compatibility claims copied from the factory's website.
The single most revealing question you can ask an ink supplier:

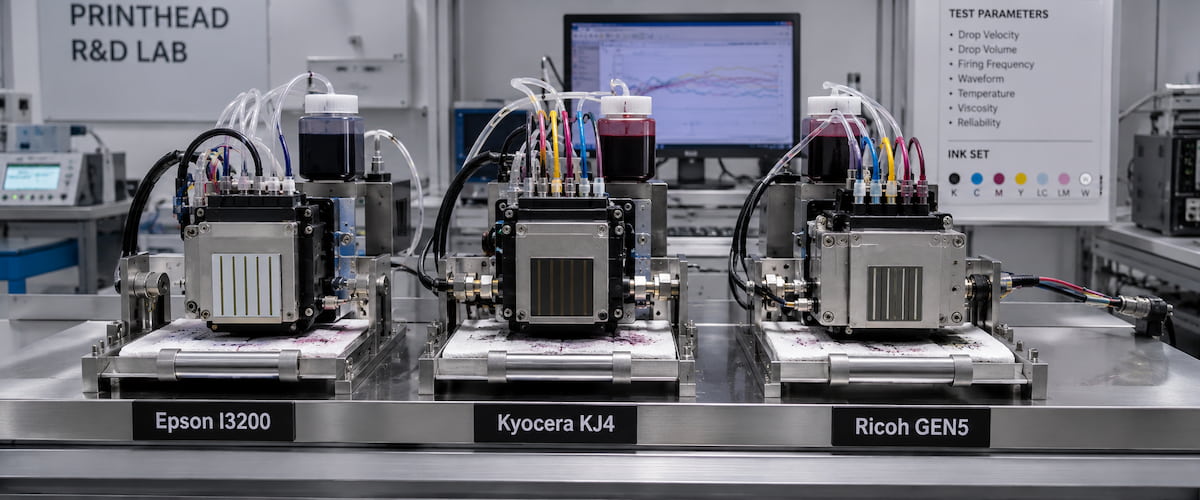

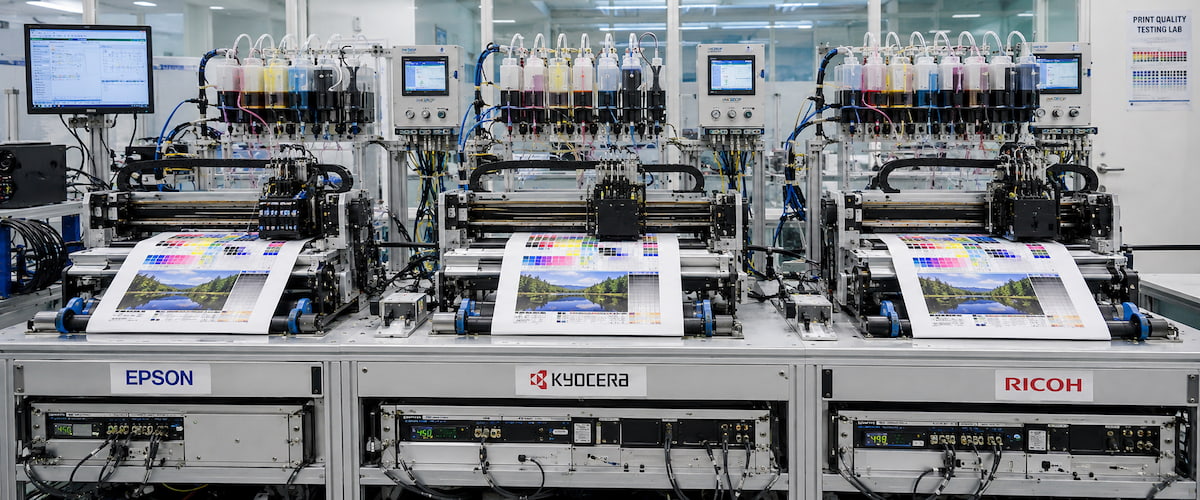

"How many test printers do you physically own — and can I see them on a live video call?" A manufacturer that formulates ink owns the printers their customers use. They run daily tests. They can show you the machines running. A trading company cannot — because they do not own the printers, and they do not formulate the ink.
Ask to see a test report for your exact printer model. If you run an Epson SureColor F6470 with I3200 heads, ask for data from that machine — not a generic "Epson compatible" document. The test report should include: nozzle check before and after 72-hour idle, a printed test chart with spectrophotometer readings for each color channel, and the batch number of the ink tested. A manufacturer that has actually tested on your printer can produce this in minutes.
No — not optimally. Epson heads require ink viscosity in the 3–5 mPa·s range, while Kyocera heads need 5–7 mPa·s. An ink formulated for one platform will be suboptimal for the other. Some suppliers sell a "middle ground" formulation around 5 mPa·s, but this compromises performance on both platforms: too thick for Epson (increased missing nozzles over time) and too thin for Kyocera (satellite droplets at high speed). If you run both Epson and Kyocera printers, you need two separate ink formulations.
D90 below 250 nm for Epson and Ricoh GEN5 heads. D90 below 200 nm for Ricoh GEN6 (smaller nozzles). D90 below 300 nm for Kyocera KJ4 (larger nozzles). D90 means 90% of particles in the batch are below this size — it is the number that matters most for long-term clog prevention. D50 (median) tells you about the average particle. D90 tells you about the largest particles — and those are the ones that cause clogs. Always ask for both numbers.
The minimum protocol: (1) Request the ink's viscosity and surface tension specs and verify they fall within your printhead's operating window (see comparison table above). (2) Print a full nozzle check, leave the printer idle for 48–72 hours, print again. Count missing nozzles. More than 3 missing after idle = compatibility problem. (3) Print a standardized test chart and measure L*a*b* values with a spectrophotometer. (4) Run at least 100 continuous meters and check for consistency drift. Full testing protocol: 7-Day Testing Protocol.
Because cheap ink that slowly damages your printhead is more expensive than premium ink that does not. An Epson I3200 head costs $1,200–$1,800 to replace. A Kyocera KJ4 head is $3,000+. If saving $5 per liter on ink reduces your printhead life from 24 months to 8 months, you have spent $1,200+ to save roughly $300 in ink cost. The math does not work. When evaluating ink cost, always include printhead replacement frequency in the calculation.
"Compatible with" means the ink will likely not destroy the printhead immediately. It is a minimum safety claim. "Formulated for" means the ink's viscosity, surface tension, and particle size distribution were designed to match a specific printhead's operating window — and tested on that printhead over hundreds of hours. When a supplier says "compatible with all printheads," they are making a minimum safety claim. When they say "formulated for the Epson I3200 at 3.5–4.5 mPa·s," they are describing an engineering decision. Ask which one they are making.
