INKBANK R&D Team · Published September 16, 2026 · Last updated September 16, 2026 · Technical Guide
UV ink printhead compatibility is the ability of an ink to operate within the chemical, rheological, waveform, thermal, and maintenance limits of a specific printhead, not merely to produce a good test print. A compatible ink protects internal materials, forms stable droplets, matches drive energy, tolerates production temperatures, and leaves low residue.
The quality of a UV inkjet system is decided before ink reaches the substrate. It is decided at the interface between the ink and the printhead. Leading printhead manufacturers, including Epson, Kyocera, Ricoh, and Toshiba Tec, design their heads around precise chemical, fluid, and electrical assumptions. When a UV ink does not respect those assumptions, initial print quality may still look acceptable while printhead life, nozzle stability, and total cost of ownership deteriorate.

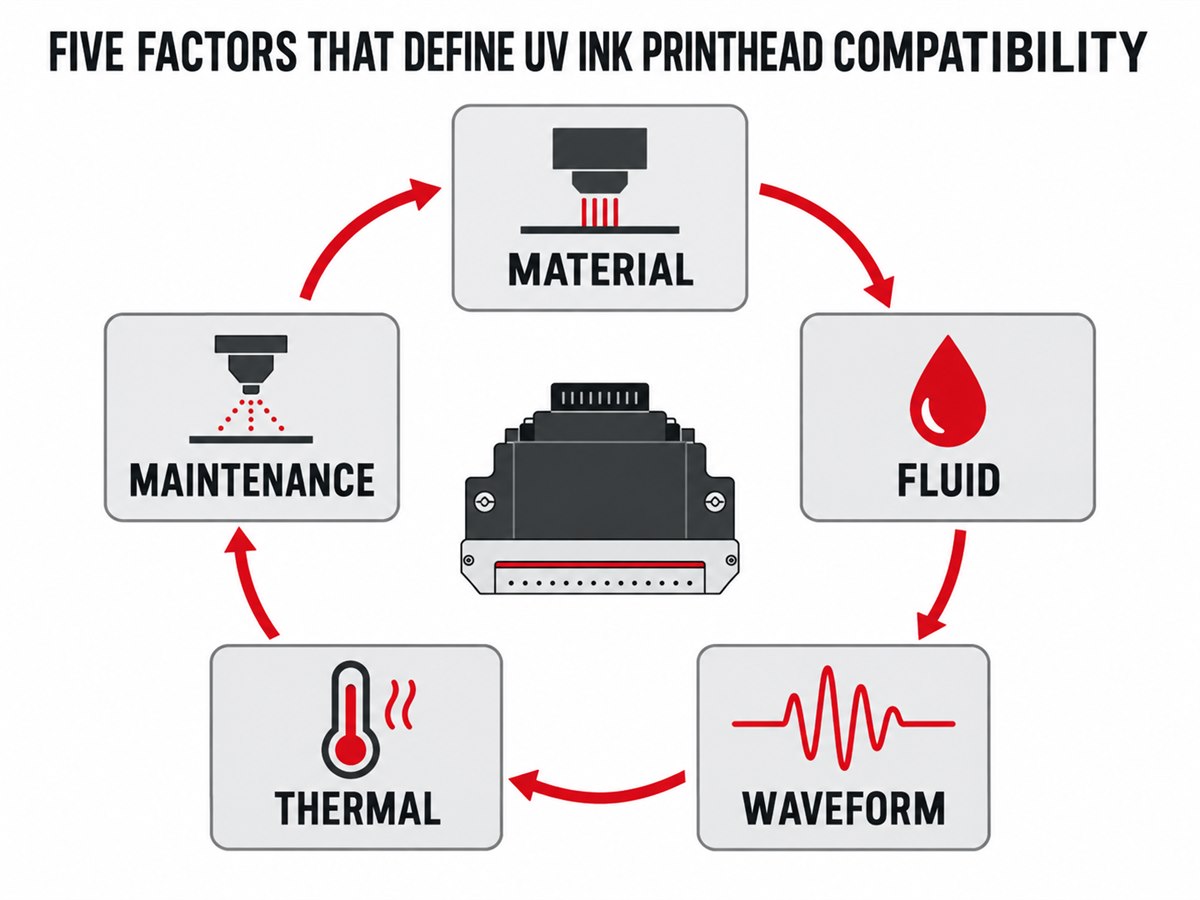

This guide examines five printhead design factors and explains what each one requires from a UV ink supplier. It also provides the technical questions and evidence to request before approving an ink for production.
Quick compatibility rule
A supplier should be able to connect the ink specification to a specific printhead model, waveform, operating temperature, and maintenance condition. A generic claim that an ink works with all printheads is not a compatibility specification.
Why does printhead design determine UV ink compatibility?
Printhead design determines the chemical exposure, viscosity window, droplet formation, firing energy, operating temperature, and cleaning requirements that a UV ink must satisfy. Compatibility therefore depends on the complete printhead system, not only on whether the ink produces a clean nozzle check on the first day.
UV inkjet is a coupled system. The printhead decides how much energy reaches the ink, how quickly the channel refills, how heat is managed, and which internal materials contact the fluid. The ink determines how those materials age, how stable the droplets remain, and how much residue accumulates. A mismatch can appear as swelling, corrosion, nozzle dropout, satellite droplets, poor drop placement, or gradual sedimentation.
The most expensive failure mode is often the slowest. A printhead that should remain in service for years can lose nozzles progressively after weeks or months of exposure. By the time the defect appears in production, the internal damage may already be irreversible.
| Printhead design factor | What the printhead requires | What a compatible UV ink must deliver | Failure if mismatched |
|---|---|---|---|
| Internal materials | Stable seals, adhesives, channel materials, and corrosion resistance | Controlled reactive monomers, low swelling, suitable chemical compatibility | Swelling, leakage, corrosion, drift, premature head failure |
| Fluid and flow path | Defined viscosity and surface-tension window with stable channel refill | Stable rheology, clean break-off, dispersion stability, low sedimentation | Satellite drops, starvation, poor placement, gradual nozzle accumulation |
| Drive waveform | Predictable response to voltage, pulse timing, and firing frequency | Jetting within standard waveform parameters without extreme drive energy | Drop-placement errors, unstable grayscale, inconsistent dot formation |
| Thermal control | Stable viscosity across the operating temperature range | Flat viscosity-temperature curve and wide working window | Overheating compensation, unstable jetting, increased thermal load |
| Maintenance design | Effective cleaning, serviceability, and predictable maintenance intervals | Low residue and easy removal from nozzles and internal channels | Longer cleaning cycles, manual intervention, shutdowns, head replacement |
How does material compatibility affect UV ink and printhead life?
UV-curable inks contain reactive monomers such as THFA (tetrahydrofurfuryl acrylate) and HDDA (1,6-hexanediol diacrylate). These materials are chemically aggressive and can affect internal printhead components when their concentration and formulation are not carefully controlled. Kyocera printheads, for example, use corrosion-resistant materials to support head life and jetting stability.
Swelling is a second risk that can be easy to overlook. Monomers such as THFA and PHEA (2-phenoxyethyl acrylate) can swell epoxy adhesives and silicone seals. Seal swelling may not stop the head immediately. It can change channel geometry, reduce sealing integrity, or create a slow reliability problem that appears after repeated thermal and pressure cycles.
What a compatible ink must do
Control the concentration and combination of aggressive or swelling monomers.
Match the printhead manufacturer's material-compatibility assumptions.
Protect seals, adhesives, and internal fluid-path materials over long production exposure.
Provide compatibility evidence for the target printhead family, not merely a generic UV ink formulation.
INKBANK engineers UV ink formulations with balanced monomer profiles intended to protect seals and internal parts while maintaining jetting and cure performance. The appropriate formulation must still be validated on the exact printhead, ink supply system, and operating condition.

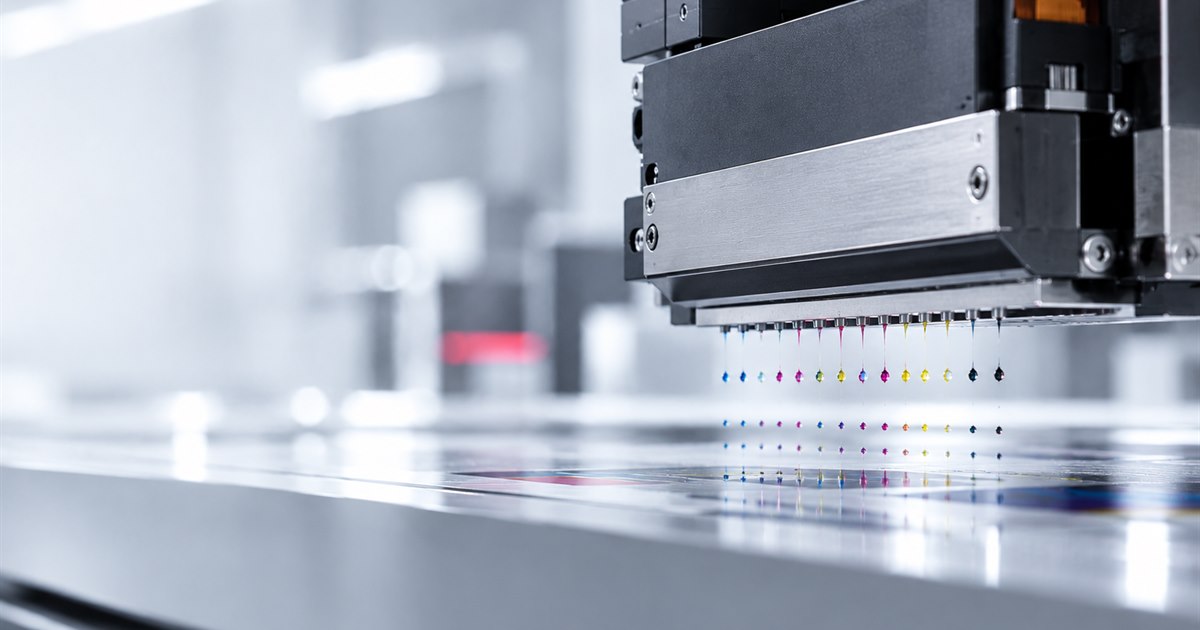

How do viscosity and surface tension define UV ink compatibility?
Printhead nozzles are designed for a specific viscosity and surface-tension window. Nozzle geometry must match the ink's rheology to produce stable droplets with accurate placement. The Epson I3200-U1, for example, is optimized for high-precision jetting control.
Inside the printhead, channel geometry is designed to reduce flow resistance and reduce sedimentation. The Ricoh G6 uses an internal circulation structure to keep ink moving and minimize the risk of pigment settling. That design helps only when the ink remains stable under circulation and does not develop viscosity drift, foam, or particle accumulation.
What a compatible ink must do
Remain inside the printhead's defined viscosity and surface-tension window.
Form a clean droplet at the required firing frequency.
Resist sedimentation and maintain dispersion stability over time.
Recover reliably after idle, circulation, and production stops.
| Fluid property | What it controls | Warning sign |
|---|---|---|
| Viscosity | Flow resistance, channel refill, drop ejection | Missing nozzles when too high; satellites and leakage risk when too low |
| Surface tension | Droplet break-off and wetting at the nozzle plate | Missing dots when too high; nozzle-plate wetting and placement errors when too low |
| Particle dispersion | Passage through channels and long-term resistance to accumulation | Gradual pressure loss, nozzle dropout, sedimentation in circulation systems |
Why must UV ink match the printhead waveform?
Drive waveforms are tuned to the ink's fluid properties. Higher-viscosity inks generally require more jetting energy, which may require changes in waveform voltage and pulse duration. Stable waveform matching improves jetting accuracy and reduces print defects, a priority in heads such as the Epson S3200-U1.
An ink that requires an unusually aggressive waveform may be outside the intended design window. The result can be unstable grayscale, inconsistent drop volume, or additional stress on the actuator. Compatibility means that the ink can jet reliably within standard waveform parameters, not that the printer can be pushed beyond its normal operating range.
What a compatible ink must do
Balance jettability with UV cure performance.
Respond consistently to the printhead's validated waveform.
Avoid demanding extreme drive voltage or pulse duration.
Maintain stable drop volume across the full range of print modes and dot sizes.
Why does thermal stability matter to UV ink compatibility?
Printheads compensate for temperature-related viscosity changes with built-in heaters and may use cooling systems, such as the water cooling in Toshiba Tec CF6/R heads, to prevent overheating. Kyocera heads integrate heaters to support stable jetting across operating temperatures.
Thermal control is not a substitute for a stable ink. When the viscosity-temperature curve is too steep, the printhead must work harder to maintain droplet behavior. This can reduce the available operating window, increase thermal load, and make output sensitive to ambient conditions or warm-up time.
What a compatible ink must do
Maintain a relatively flat viscosity-temperature curve.
Operate across the printhead's intended temperature range.
Reduce the burden on heaters and cooling systems.
Avoid sudden changes in drop volume as production temperature rises.
How do residue and maintenance affect printhead reliability?
Printhead design increasingly prioritizes serviceability. The Ricoh G6's modular structure allows the data cable to be separated, reducing maintenance cost. Some printheads also include self-cleaning functions that remove residual ink automatically.
Even a well-designed maintenance system depends on the ink. High residue, poor cleaning response, or pigment accumulation can shorten maintenance intervals and increase manual intervention. The result is not only more service work, but more variability between operators and shifts.
What a compatible ink must do
Minimize residue in nozzles, channel structures, and capping systems.
Respond consistently to the printhead's cleaning cycle.
Support long production runs without progressive nozzle loss.
Provide predictable recovery after idle periods and scheduled maintenance.
INKBANK UV inks are formulated to support stable droplet formation and long-term dispersion stability across leading printhead platforms. Compatibility must still be confirmed for the exact printhead model, ink supply system, waveform, and operating environment.
What should you ask a UV ink supplier before buying?
A reliable supplier should connect the ink to the printhead's design requirements with measurable data and a production-relevant test plan. Ask for the printhead-specific answer, not only the catalog name of the ink.
| Supplier question | Evidence to request |
|---|---|
| Which exact printhead models and variants were evaluated? | Model list, test machine configuration, head variant, and test date |
| How does the ink control aggressive monomers and swelling? | Material-compatibility rationale and relevant long-duration exposure data |
| What are the viscosity and surface-tension targets? | Target range, measurement temperature, batch tolerance, and test method |
| Which waveform and head temperature should be used? | Printhead-specific waveform, voltage guidance, and temperature range |
| How stable is the ink after idle and during circulation? | Nozzle-check data before and after idle, circulation test results, and recovery procedure |
| How much residue does the ink leave after extended printing? | Residue observations, cleaning-cycle results, and maintenance interval data |
| Does the supplier provide ICC support for the printer and application? | ICC profile, printer model, printhead layout, media, and color target |
| What production trial should be run before approval? | Continuous print duration, idle test, nozzle count, color measurement, and pass criteria |
Compatibility is an engineering discipline, not a marketing claim
The most economical UV ink is not necessarily the lowest-priced bottle. It is the ink that protects the printhead over thousands of production hours while meeting the application's cure, adhesion, color, and reliability requirements.
Print service providers should treat printhead compatibility as a qualification process. Confirm the printhead model, request material and fluid data, verify the waveform and thermal requirements, test idle recovery, and inspect residue after sustained production. When those variables are documented, compatibility becomes repeatable instead of subjective.
INKBANK manufactures flexible UV-LED and label UV-LED inkjet inks for industrial digital printing. Its R&D infrastructure includes 16 laboratories and more than 500 test printers, supporting printhead compatibility evaluation across mainstream industrial platforms. Relevant UV products are supported by GREENGUARD Gold certification, with REACH and RoHS compliance where applicable. Explore the Flexible UV-LED Curable Ink and Label UV-LED Ink product pages for application details.
Frequently asked questions
What does UV ink printhead compatibility mean?
UV ink printhead compatibility means the ink operates safely and predictably within a specific printhead's chemical, viscosity, surface-tension, waveform, thermal, and maintenance limits. It is more than producing an acceptable test print. It includes long-term material stability, stable jetting, idle recovery, and low residue.
Why can a UV ink damage a printhead even when print quality looks good?
Some compatibility failures develop slowly. Reactive monomers may swell seals or affect adhesives over time, particles may accumulate gradually, and thermal stress may change channel behavior. The print may look acceptable during early tests while internal components are already aging faster than intended.
Which UV ink components can affect printhead seals?
Reactive monomers such as THFA, HDDA, and PHEA are important examples. Their effect depends on concentration and the complete formulation. A printhead-friendly ink controls aggressive or swelling monomers so that seals, adhesives, and internal materials remain stable during production.
Why do viscosity and surface tension matter for UV printheads?
Viscosity controls flow resistance, channel refill, and droplet ejection. Surface tension controls droplet break-off and nozzle-plate wetting. If either value falls outside the printhead's design window, the result can be missing dots, satellite drops, poor placement, or nozzle-plate flooding.
Can one UV ink work across Epson, Ricoh, Kyocera, and Toshiba printheads?
One formulation may be used across some platforms when it is deliberately engineered and tested for them, but compatibility cannot be assumed from the printer brand or the phrase “UV ink.” Printhead models differ in materials, nozzle geometry, waveform, viscosity window, temperature control, and maintenance design.
How does the drive waveform affect UV ink compatibility?
The waveform determines how the actuator delivers energy to the ink. An ink that requires excessive voltage or unusual pulse timing may be outside the intended design window, causing unstable drop volume, poor grayscale control, or additional stress on the printhead.
Why does thermal stability matter in industrial UV printing?
Viscosity changes with temperature. Printheads use heaters and cooling systems to stabilize jetting, but a steep viscosity-temperature curve increases the burden on those systems. A flatter curve helps maintain drop volume and jetting stability across warm-up, continuous production, and changing ambient conditions.
What data should a UV ink supplier provide before approval?
Request the printhead model and variant, viscosity and surface-tension targets, measurement temperature, batch tolerance, recommended waveform and head temperature, idle recovery results, circulation or sedimentation data, residue observations, ICC support, and a production-scale test plan.
How can maintenance improve UV ink compatibility?
Low-residue ink and the correct cleaning cycle help preserve nozzle and channel condition. Maintenance intervals should be based on the ink, printhead, duty cycle, idle behavior, and production environment rather than copied from a generic UV printer guideline.
What is the difference between “compatible” and “formulated for” a printhead?
“Compatible” is often a minimum safety claim. “Formulated for” means the ink's chemical and fluid properties were selected for a specific printhead design and validated under relevant production conditions. Ask the supplier which printhead model, waveform, and test protocol support the claim.
