Printing fluorescent sportswear that genuinely glows is a chain of five links. One weak link = dull, muted jerseys that disappoint your client and cost you reorders.
| Link | What | Why It Matters |
|---|---|---|
| 1 | 100% polyester bright-white fabric with OBAs | Sublimation only bonds to polyester. Off-white = dead neon. |
| 2 | High-concentration fluorescent ink (90%+ transfer rate) in a 6+ color printer | Standard CMYK CANNOT produce true fluorescence. It's physics. |
| 3 | Custom ICC color profiles for your exact ink + fabric + printer | Fluorescent dyes have different spectral properties — generic profiles fail. |
| 4 | High-release transfer paper (90-97% transfer efficiency) | Budget paper steals 25-40% of your ink and leaves it on the sheet. |
| 5 | Calibrated heat press at 195-205°C with verified temperature uniformity | The #1 failure point. Built-in gauges can be off by 15°C. |
There is a specific silence on a client call when they open the sample box and the neon is wrong. You know it. They know it. The order is at risk. We help shops eliminate that silence.
A running brand sends you a neon-yellow jersey spec. You quote the job. Your standard CMYK sublimation ink produces a dull mustard. The brand walks. That order — and the season's reorders — now belongs to a competitor who figured out fluorescent chemistry. This isn't hypothetical. It happens every production cycle.
Standard CMYK sublimation ink subtracts light — pigments absorb certain wavelengths and reflect the rest. This is why CMYK can only reproduce colors within the sRGB gamut.
Fluorescent disperse dyes ADD light. They absorb invisible UV radiation from daylight and re-emit it as visible light. That's why true fluorescent colors "glow" even in standard daylight — and intensify dramatically under blacklight. This is not a brighter version of CMYK pink. It is an entirely different physical mechanism.
| Global dye-sublimated apparel market | Projected $6.01 billion (2026) |
| Latest printer configurations | Up to 11-color with OEKO-TEX ECO PASSPORT certified fluorescent channels |
| Key growth segments | Sportswear, cycling, esports apparel |
Because sublimation ink bonds inside the polyester fiber at the molecular level — rather than sitting on top like screen printing or heat transfer vinyl (HTV) — the fabric breathes naturally. No surface layer. No blocked pores. No "plastic sheet" feel. Sublimation preserves 100% breathability, and your athletes feel the difference.
⚛️ ATOMIC ANSWER: Fluorescent sublimation works best on 100% white polyester with optical brightening agents (OBAs), a tight, smooth weave at 120-180 GSM, and specific knit constructions matched to the sport. Cotton, dark fabrics, and off-white polyester will NOT produce neon results regardless of ink quality.
✔ 100% polyester: Sublimation bonds only to polyester. 85% minimum polyester content; below that = washed-out, patchy color. Poly-cotton blends need 65%+ polyester for acceptable (not optimal) results.
✔ Bright white base: Sublimation ink is transparent — there is no white ink in sublimation printing. Off-white or cream fabric = dull, muddy prints. Period. The brighter your white, the brighter your neon.
✔ Optical brighteners (OBAs): OBAs absorb UV light and re-emit it as blue-white visible light — amplifying fluorescent brightness by an estimated 10-15%. Specify OBA-treated fabric when sourcing.

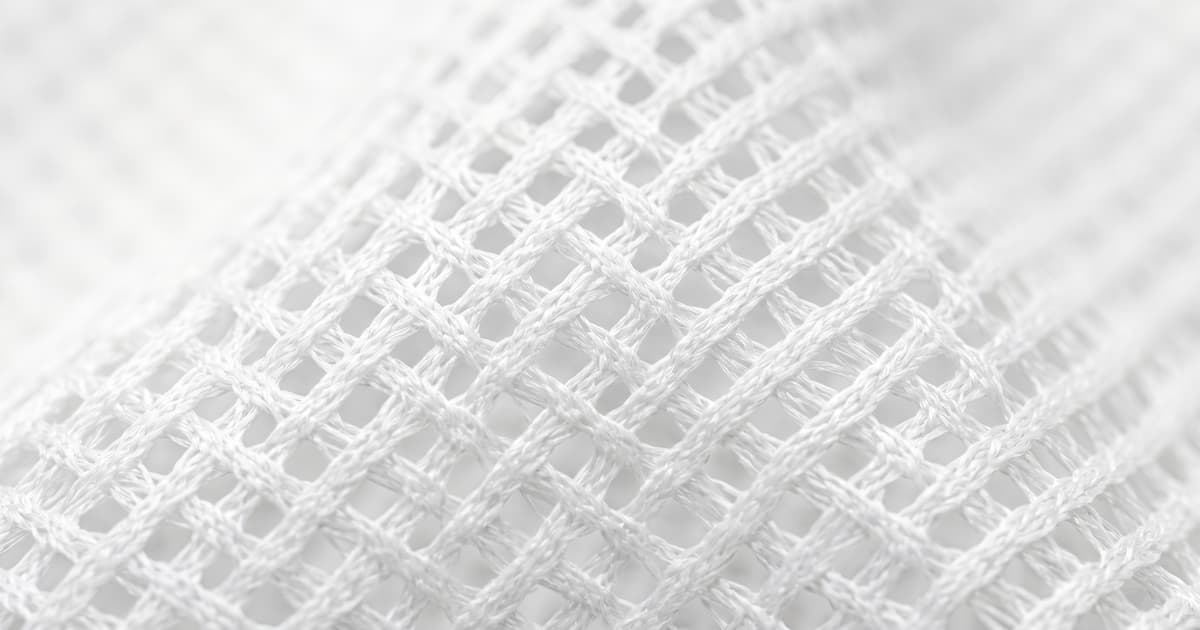

✔ Smooth, tight weave: Coarse or textured fabric scatters light and reduces perceived brightness. Choose microfiber or micro-mesh at 120-180 GSM for optimal color vibrancy.
⚠️ Pre-press reminder: Always pre-press the garment for 5-10 seconds before applying the transfer. Humidity trapped in the fabric becomes steam during pressing → patchy, uneven neon transfer. This small step prevents a common failure.

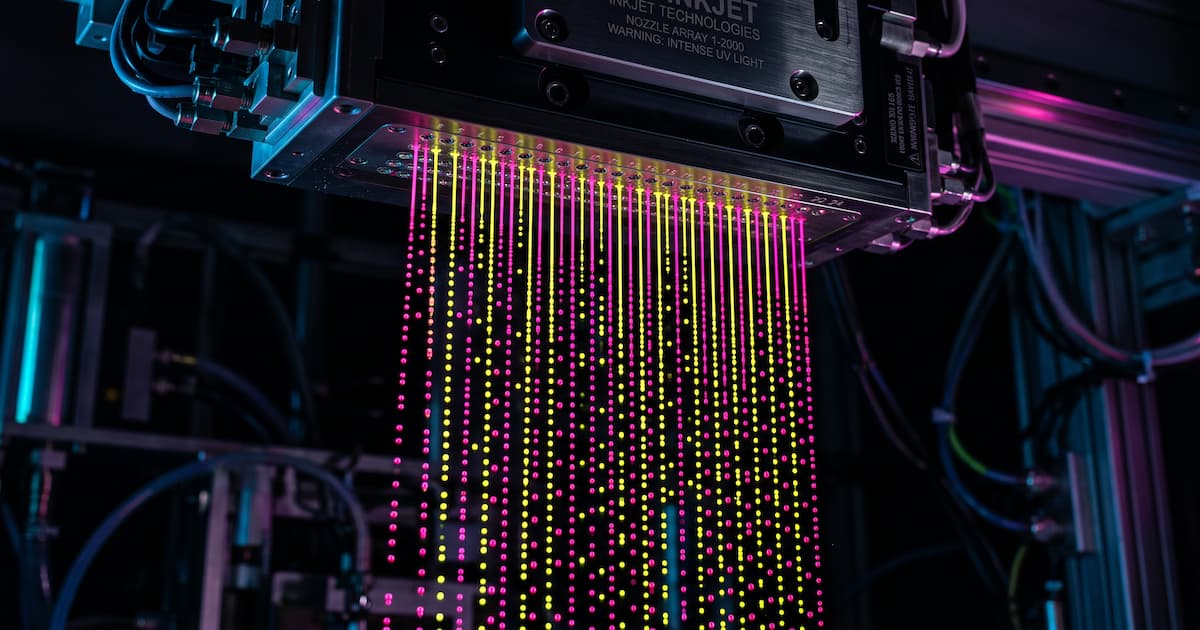

⚛️ ATOMIC ANSWER: You need two things to print true fluorescent colors: (A) a 6-color or 8-color printer with dedicated fluorescent ink channels, and (B) high-concentration disperse dye ink with 90%+ transfer rates and particle size dispersion below 0.2μm for reliable jetting.
A standard 4-color CMYK printer cannot produce true fluorescence. You need at minimum:
6-color setup: CMYK + Fluorescent Pink + Fluorescent Yellow
8-color setup (recommended): CMYK + Orange + Violet + Fluorescent Pink + Fluorescent Yellow
| Parameter | Standard Ink | INKBANK Ultra-High Con. |
|---|---|---|
| Dye solid content | 8-15% | 18-25% |
| Transfer rate | 70-85% | 90%+ |
| Ink consumption | Higher volume needed | Lower volume for same saturation |
| Particle dispersion | Standard | <0.2μm (nano-milling) |
Transfer rate: 90%+
Particle dispersion: <0.2μm
Compatible printheads: Epson DX4-DX7, i3200, S3200, Kyocera KJ4B, Ricoh Gen5/Gen6, Konica KM1024, Fujifilm StarFire, etc.
Certified: OEKO-TEX ECO PASSPORT, ZDHC MRSL Level 3, GOTS 7.0
Wash fastness: 4-5 grade (ISO 105-C06), 100+ industrial washes
Batch consistency: ΔE < 1.0
⚛️ ATOMIC ANSWER: Fluorescent inks have different spectral properties than CMYK — your RIP software must use a custom ICC profile built specifically for your ink set, your fabric, and your transfer paper. Skip this step and your neon will never match your screen.
Print a color target (IT8.7/4 chart) using your exact ink set — including fluorescent channels.
Transfer the target to your actual production fabric under standard conditions.
Measure the target with a spectrophotometer (X-Rite i1 or equivalent).
Build the ICC profile in your profiling software.
Assign the profile in your RIP software (Caldera, Onyx, Ergosoft, etc.).
Re-profile for every new fabric type or ink batch change.
⚛️ ATOMIC ANSWER: Use high-release sublimation transfer paper with 90%+ transfer efficiency, 90g/m² minimum weight, and instant-dry coating. Budget paper traps 25-40% of your fluorescent ink on the sheet — you pay for ink you never see on the fabric.
| Paper Quality | Transfer Rate | Result |
|---|---|---|
| Budget | 60-75% | Dull neon — 25-40% of your ink stays on the paper |
| High-Release ⭐ | 90-97% | Maximum vibrancy — nearly all ink transfers to the fabric |
⚛️ ATOMIC ANSWER: Calibrate your heat press at 195-205°C (verified with an external digital thermometer), medium pressure (30-40 psi) with uniform platen contact, and dwell time of 45-60 seconds depending on fabric weight. Built-in temperature gauges can be 5-15°C off.
☐ Verify platen temperature with an external digital thermometer.
☐ Check pressure uniformity with pressure-sensitive film — cold spots = patchy neon.
☐ Pre-press garment 5-10 seconds to remove moisture.
☐ Secure transfer paper with heat-resistant tape on all 4 sides.

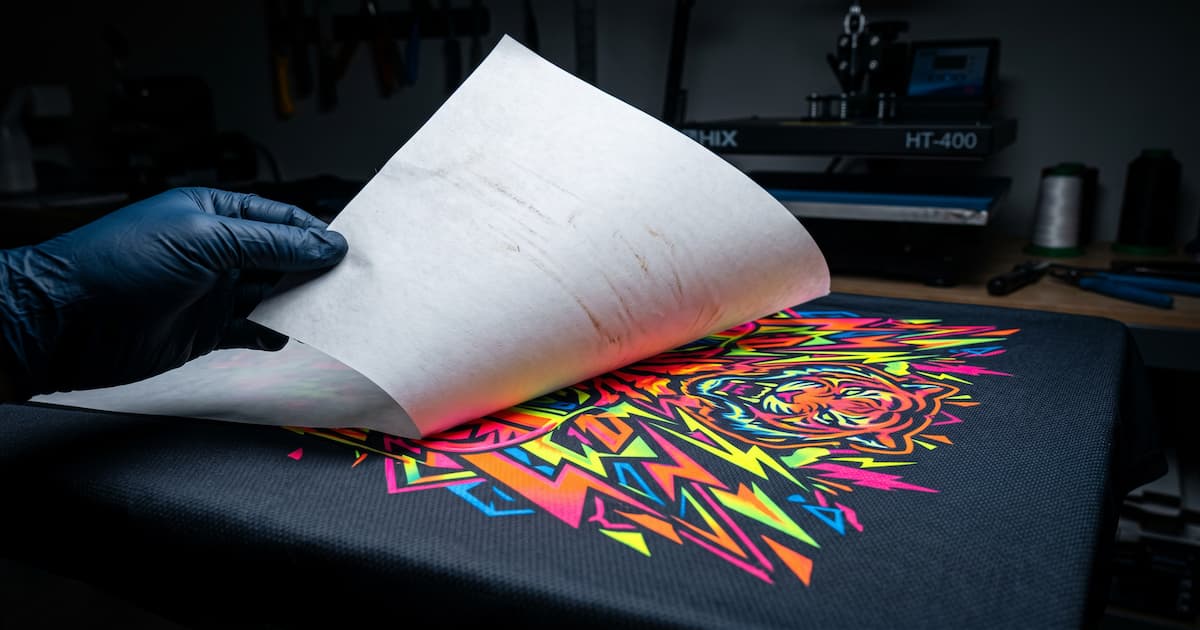

☐ Cool peel — hot-peel can shift or dull fluorescent colors.
| Problem | Likely Cause | Fix |
|---|---|---|
| Dull / muted neon | Fabric not 100% polyester, no OBAs, low-grade paper, missing ICC, or under-pressing | Check each of the 5 links in sequence |
| Bleeding / ghosting | Paper shifted during press, humid paper, or over-pressing temperature | Tape paper down; reduce temp/time by 5°C/5 sec |
| Printhead clogging | Poor dispersion stability at high dye loadings | Daily nozzle check; use nano-milled INKBANK formulations |
Biodegradability proof now required for surfactants and complexing agents used in ink formulations.
Bisphenol limits tightened: Bisphenol B, F, and S reduced from 1,000 mg/kg to 200 mg/kg under OEKO-TEX RSL.
n-Hexane added to the OEKO-TEX Restricted Substances List (RSL).
Action Item: Verify your supplier's certification is current — products certified before these changes may need re-certification. INKBANK formulations are fully 2026-compliant.
No. Sublimation only bonds to polyester fibers. The dye-to-fiber bond requires polyester's molecular structure. For cotton garments, use DTF (Direct to Film) printing with fluorescent pigment inks.
You need a printer with 6 or more color channels that supports dedicated fluorescent ink positions (Fluorescent Pink + Fluorescent Yellow minimum). Standard 4-color CMYK printers cannot produce true fluorescent colors.
In the print industry, "fluorescent" and "neon" are used interchangeably. Technically, the correct term is fluorescent: the ink contains disperse dyes that absorb invisible UV radiation and re-emit it as visible light. "Neon" is just a marketing descriptor.
No. Fluorescent disperse dyes have fundamentally different spectral reflectance curves than standard CMYK colorants. A profile built for CMYK ink will produce inaccurate results when used with fluorescent channels. You need separate ICC profiles.
INKBANK Ultra-High Concentration Sublimation Ink is purpose-built to never be the weak link.
