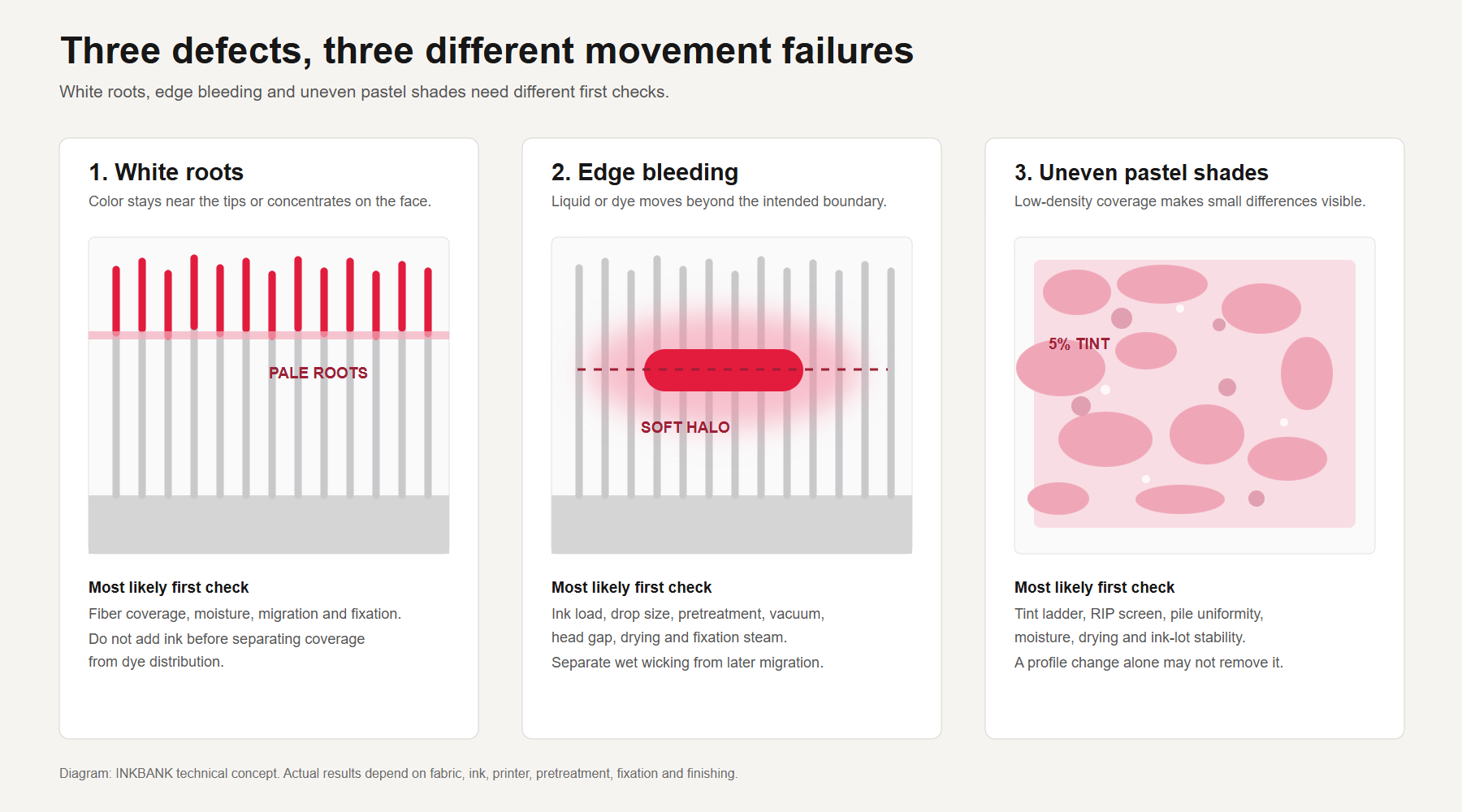

The short answer: White roots, bleeding edges and mottled pastels are not three unrelated ink faults. They are three different failures in droplet placement, fiber coverage and fixation on a three-dimensional pile. White roots mean the visible tips are colored but the roots are not; bleeding means ink moves laterally beyond the intended edge; mottling means small coverage differences become visible in low-density color.
Polyester pile fabric is unforgiving because the print surface is not a flat sheet. Coral fleece, flannel, plush, velour and similar fabrics contain fiber tips, a porous pile layer, a ground structure and air spaces in between. An ink droplet can travel down a fiber, sideways through a capillary channel, upward during drying, or remain where it landed. The result depends on the ink, the fabric, the pretreatment, the printer settings and the fixation process working together.
That is also why changing only the ICC profile rarely solves a pile-fabric defect. Color management can correct the intended digital color, but it cannot force dye into an uncovered fiber root or stop a droplet from wicking under the pile.
A flat polyester fabric presents a relatively continuous surface to the printhead. A pile fabric presents a forest of fibers with different heights, angles and capillary paths. Even two rolls with the same fiber content and weight can behave differently if pile height, density, raising, brushing or compression has changed.
There are three consequences:
Coverage is uneven by geometry. A droplet may land on a raised fiber tip while the fiber beside it remains partly shaded.
Liquid can move in more than one direction. It can follow a fiber downward, spread laterally through the pile, or remain near the surface.
The appearance changes when the pile moves. A print can look solid when the fibers lie flat and appear frosty or pale when the pile is brushed, folded or compressed.
This is why pile-fabric quality should be judged on the intended face, in the intended pile direction, before and after the pile is disturbed. A flat-table inspection is not enough.
The same process change can improve one defect and worsen another. More ink may make white roots less visible while increasing edge spread and surface wetness. Stronger fixation may improve color development while adding thermal migration or changing hand feel. A heavier pretreatment may hold an edge while making the pile feel stiffer.
The practical goal is therefore not "maximum penetration" or "maximum sharpness." It is a stable balance between the following:
Enough fiber coverage to avoid visible white roots under normal handling.
Enough lateral containment to preserve the intended edge.
Enough uniformity to keep low-density pastels visually even.
Enough control after fixation and washing to preserve fastness and hand feel.
White roots appear when the visible surface carries color but the lower part of the pile remains white or pale. The defect becomes obvious when the pile is parted, bent, brushed against its normal direction or compressed during packing.
There are several possible causes, and they require different corrections.
If a large share of the color stays near the top of the pile, the print may look acceptable from one angle. When the pile opens, the contrast between the colored tips and the pale roots becomes visible.
This can happen when the droplet is too large for the capillary structure, the ink load is excessive, the fabric holds the liquid near the surface, or the printing and vacuum settings do not present the pile consistently to the printhead. Simply adding more ink can darken the tips without reaching the roots, while also increasing bleed and drying load.
Disperse dye has to move into the polyester fiber during fixation. If drying or fixation is uneven, or if the fabric carries too much moisture, dye can concentrate near the surface before it is fixed inside the fiber. The result can be a dark face with paler roots and weaker fastness.
This is not the same mechanism as shallow droplet placement. One is a coverage problem; the other is a distribution problem created during drying and fixation. Both can look like white roots after brushing.
Some pile fabrics use a white ground or a lower layer that is not designed to be fully colored. A very open pile, a low-density construction or a large pile-height variation can expose that base even when the print is technically consistent.
Before treating this as an ink fault, confirm the approved fabric construction, the intended print face and the customer's acceptance condition. A print cannot reliably color a fiber that is hidden from the ink path or a backing that the design does not require to be colored.
Transfer sublimation applies heat and pressure from the paper side. On a deeper pile, contact is concentrated at the tips. Increasing pressure to reach the root can crush the pile, flatten the hand and change the surface appearance. Direct disperse printing can offer a different penetration path, but it also requires the correct pretreatment, fixation and washing sequence.
Neither route guarantees a white-root-free result on every pile. The right route depends on pile height, density, fiber, design, hand feel and the customer's test standard.
"Bleeding" is often used for more than one phenomenon. On pile fabric, it usually means one of two things:
Wet lateral wicking: liquid ink spreads sideways through the pile before it is held or dried.
Migration or ghosting: dye moves during drying, fixation or transfer and appears outside the intended boundary.
The correction is different. A wet-wicking defect is visible as a soft, feathered halo around a line or between adjacent colors. A migration defect may appear after fixation, sometimes with a different edge profile or color contamination that was not present immediately after printing.
A 2024 study on direct disperse inkjet printing showed that ink rheology can be used to limit bleeding: a temperature-responsive viscosity increase helped hold the printed image on polyester and improved line clarity without relying only on chemical pretreatment (PubMed record). That finding supports the general principle, not a universal recipe for every pile fabric.
Droplet size and ink load. A larger liquid load gives the pile more material to move sideways before capillary action slows.
Ink viscosity and surface tension. The ink must jet reliably, wet the polyester enough to transfer color, and then stop spreading before the edge becomes unstable.
Pretreatment uniformity. A pretreatment can hold the droplet near the surface and improve edge definition, but an uneven or excessive coating can create patches, stiffen the pile or change color development.
Fabric presentation. Vacuum, head gap, pile compression and fabric feed affect how the pile meets the printhead and how much air space remains for lateral movement.
Moisture and drying. A wet pile or a slow first drying stage gives the liquid more time to wick.
Fixation steam and condensation. Uneven steam can move dye or create water marks after the printed edge has initially looked clean.
Increasing ink load is an intuitive response to pale coverage, but it increases the fluid volume available for lateral movement. If the edge is already soft, the result may be a darker image with a wider halo. The better sequence is to determine whether the defect is coverage, wetting or migration before changing the ink volume.
Pastel and low-density shades make small physical differences easier to see. A dark solid can hide a slight gap in fiber coverage; a 5% or 10% tint cannot. The eye sees the pale pile structure, the white ground and any uneven droplet clustering as a cloudy or speckled pattern.
Mottling usually comes from a combination of four factors.
Pile height, density, direction, compression and raising state change the local surface area and the capillary path. A print that is even on a flat woven polyester can look patchy when the same ink load is applied to a brushed or high-pile face.
The print should be checked across the fabric width and along the roll, not only on one hand-sized sample. Pile direction should be recorded on the sample and in the inspection instruction.
Pastels often require many small dots rather than a heavy ink film. If adjacent droplets merge before the fiber structure holds them in place, the halftone pattern can collapse into irregular clusters. Some areas appear slightly darker; other areas show more white substrate.
This is a physical print defect. Adjusting only the color profile may move the average color closer to the target while leaving the visual mottling unchanged. The RIP screen, droplet strategy, ink load, pretreatment and drying behavior all need to be assessed together.
Thick pile can retain moisture from storage, pretreatment or humid production conditions. Uneven moisture changes how the droplet spreads and how dye migrates during fixation. Local over-wetting can produce a darker patch; a dry area can pull the droplet in a different direction.
Record fabric moisture condition and drying before fixation. Do not use fixation heat to compensate for a wet print surface without confirming the effect on shade, migration and hand feel.
Disperse inks contain dispersed dye particles. Particle-size growth, agglomeration or poor redispersion can create uneven color density and nozzle performance issues. At low colorant load, a small amount of agglomeration can become more visible as speckling or shade variation.
This is why an ink complaint should be supported by an ink lot number, a retained sample from the same lot, printhead performance records and a comparison against a known-good lot. A visual comparison alone cannot separate ink instability from fabric variation.

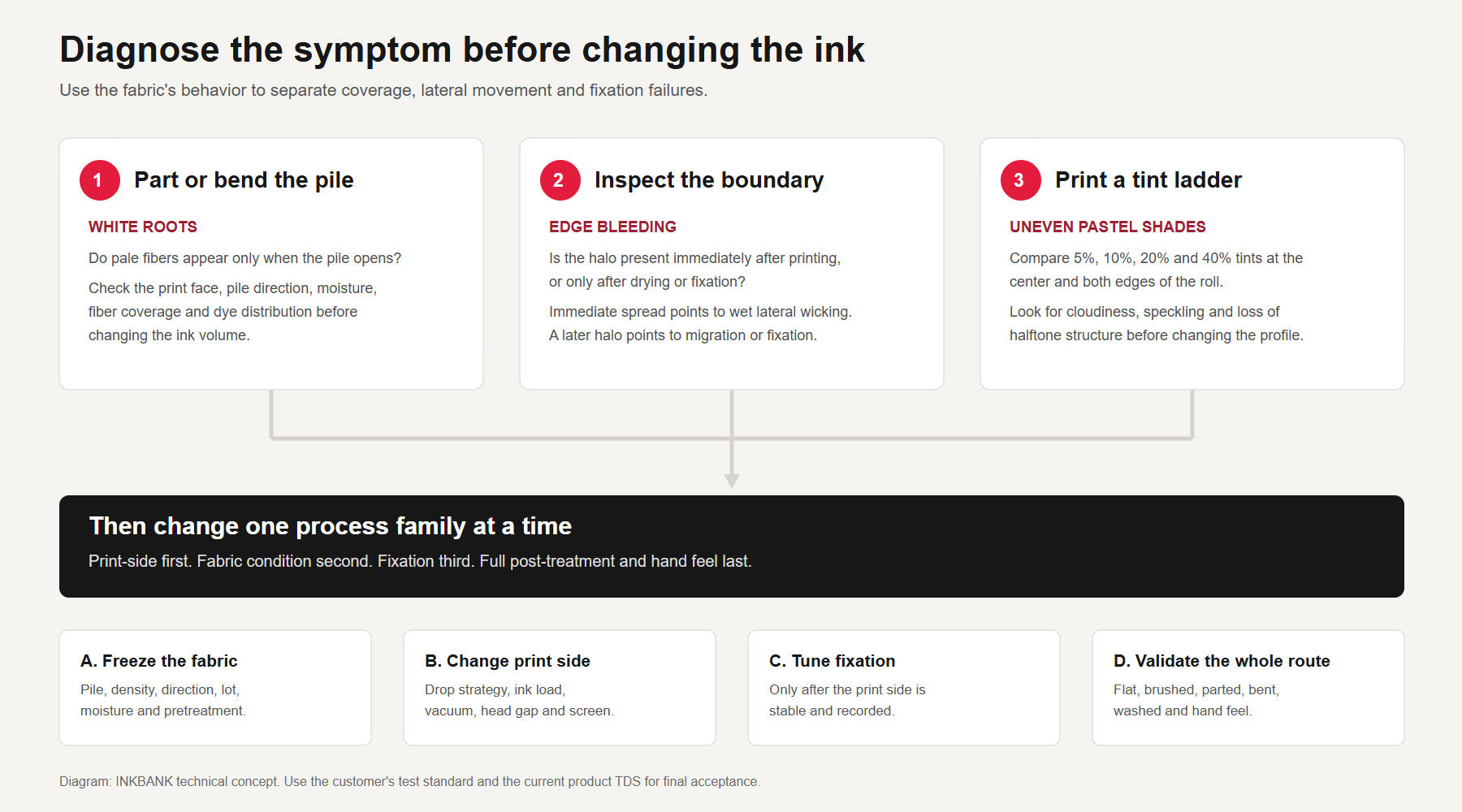

Use the symptom's location and behavior to narrow the cause before changing the ink.
| Observation | More likely failure | First checks |
|---|---|---|
| White or pale fibers appear only when the pile is parted, brushed or folded | Fiber coverage or dye distribution | Print face, pile direction, moisture, droplet/ink load, fixation profile |
| A line or color boundary has a soft halo immediately after printing | Wet lateral wicking | Ink load, drop size, pretreatment, vacuum, head gap, drying |
| A halo or color contamination appears after fixation | Dye migration or fixation nonuniformity | Moisture, drying, steam distribution, fixation dwell, washing |
| Pastel patches look cloudy across a solid tint | Low-density coalescence or fabric variation | Tint ladder, RIP screen, pile uniformity, moisture, ink lot |
| The face is dark but the roots are pale | Surface concentration or thermal migration | Drying rate, fixation, washing, ink chemistry |
| The defect repeats at the same width position | Mechanical or fabric-feed issue | Vacuum, head gap, fabric deformation, roll edge, platen condition |
An evaluation is more useful when it produces a repeatable decision, not just one attractive sample.
Record fiber content, pile height, fabric weight, backing construction, pile direction, raising or brushing state, moisture condition and the supplier lot. Keep a retained unprinted swatch from the same lot.
Do not compare a new pile sample with a flat polyester sample and treat the difference as an ink effect. The substrate has changed.
Include:
Solid patches of each process color.
5%, 10%, 20% and 40% tints in neutral and pastel combinations.
Fine lines and small type.
Adjacent colors with no trap.
A gradient that crosses from light tint to solid.
Repeated patches at both edges and the center of the roll.
The tint ladder is essential. It shows whether the problem is present only at low coverage, whether it follows the pile direction and whether it changes across the fabric width.
Start with the print side:
Hold pretreatment and fixation constant.
Change the droplet or ink-load strategy.
Change vacuum and head gap only within the printer manufacturer's safe operating range.
Compare RIP screens using the same color target.
Then test the fabric side:
Compare dry and conditioned swatches from the same lot.
Check pretreatment pickup and uniformity.
Record pile direction and compression before printing.
Only after the print side is stable should the fixation ladder be changed. If print-side and fixation variables move together, the cause cannot be identified.
Inspect the same sample under a defined light source and viewing distance. View it:
Flat with the pile in its normal direction.
Against the pile.
With the pile parted by hand.
Bent face outward over a rounded edge.
Before and after washing or the agreed post-treatment.
Record the viewing angle, light source, distance and pile direction. A defect that is invisible under flat inspection but obvious during handling should be classified as a handling-visible coverage failure, not dismissed as an acceptable sample.
After selecting a print-side condition, test the complete process with the customer's required wash, rub, light and dimensional tests. Include hand feel, drape and pile recovery. A sample that passes color but feels crushed or stiff is not a production solution.
High-energy disperse inks are generally selected for polyester applications that need greater resistance to thermal migration and a robust fixation window. Disperse dye must diffuse into the polyester fiber under heat, then remain trapped as the fiber cools. A high-energy dye system can reduce the tendency of color to move during later heat exposure, but the result still depends on the full ink formulation and the fixation method.
Direct disperse printing commonly requires a controlled pretreatment, drying and fixation sequence. Steaming, baking, thermofixing and washing are not interchangeable across every fabric or dye system. Manufacturer guidance and an application trial are necessary (see Mimaki's disperse ink explanation and aleph's process overview).
For pile fabrics, the ink must be assessed on four dimensions at the same time:
Jetting stability: consistent droplets without nozzle loss or waveform instability.
Drop control: controlled wetting without uncontrolled lateral spread.
Dye transfer: enough movement into the fiber to develop color and fastness.
Post-treatment response: predictable washing, migration resistance and hand feel after fixation.
An ink that performs well on flat polyester is not automatically the right ink for a deep pile. The fabric structure changes the fluid path before the dye chemistry has a chance to work.
Send the application team:
A production swatch and the fabric supplier's construction details.
Fiber content, pile height, fabric weight and backing type.
Pile direction and any brushing or shearing process.
Printer model, printhead information and current ink set.
Pretreatment method and pickup, if used.
Drying and fixation route.
The required wash, rub, light and dimensional standard.
A reference sample showing the acceptable face, edge and hand feel.
The defect sample, if available, plus the ink lot and production date.
INKBANK can then confirm the current product data sheet and the appropriate evaluation path. Product-specific fixation windows, color sets and tested fabric lists must be confirmed against the current TDS and an application trial; they are not inferred from the fabric category alone.
White roots usually mean that the visible fiber tips are colored but the lower pile remains pale. Causes include shallow droplet coverage, insufficient dye movement into the fiber, thermal migration during drying or fixation, and a fabric construction that exposes a white base when the pile moves.
Pile fabric creates lateral capillary paths between fibers. If the ink remains fluid for too long, it can wick sideways before it is held by the pretreatment or dried. Wetting, ink load, viscosity, pretreatment, vacuum and fixation steam can all alter edge definition.
Pastels contain less colorant, so small variations in fiber coverage, droplet coalescence, moisture and color density are more visible. A dark solid may hide a gap that appears as a cloudy patch in a 5% or 10% tint.
Sometimes more ink changes the appearance, but it is not a reliable cure. Extra ink can darken the surface, increase lateral wicking, slow drying and make the pile feel heavier. Confirm whether the defect is coverage, migration or exposed fabric before changing ink volume.
No. High-energy disperse chemistry can improve thermal migration resistance and fixation robustness, but it cannot compensate for an unsuitable fabric, uneven pretreatment, poor pile presentation or an incorrect fixation process. The ink and process must be validated together.
Flat inspection emphasizes the fiber tips. Brushing or folding opens the pile and reveals the roots. A production sample should therefore be checked before and after the pile is disturbed, not only in the flat state.
Wet bleeding usually appears as a soft halo or inter-color spread soon after printing. Thermal migration can appear after drying or fixation and may change with moisture, dwell time and temperature. Comparing the same sample at each process stage is the most reliable way to separate them.
No. Direct disperse printing can provide a different penetration path, but it brings pretreatment, drying, fixation and washing requirements. Transfer can be suitable for some short-pile or design-led products. The selection should be based on pile structure, hand feel, edge requirement, fastness and the full production route.
Send a production swatch, fiber content, pile height, fabric weight, printer and printhead details, pretreatment and fixation route, target test standard and a reference sample. The more complete the process record, the faster the cause can be isolated.
White roots, edge bleeding and uneven pastel shades rarely have a useful one-line fix. They require a controlled comparison on the actual pile, with the print side, fabric condition and fixation response documented separately.
Request an INKBANK application evaluation with your fabric swatch, production route and defect sample.
INKBANK Group is a digital inkjet ink manufacturer with more than 20 years of research and production experience. Its product lines cover textile, packaging and label, advertising and image, building decoration, electronic circuits, office desktop and specialty applications. Products are shipped to 100+ countries and regions. INKBANK holds ISO 9001 and ISO 14001 certifications, and its textile ink portfolio is supported by certifications including GOTS, OEKO-TEX ECO PASSPORT, ZDHC MRSL and GREENGUARD GOLD. Certificate scope and current product specifications must be confirmed for the specific product and market.
Technical note: This article describes a general diagnostic framework. It does not replace the current INKBANK TDS, printer manufacturer instructions or a production trial on the customer's fabric. Fixation windows, tested pile ranges, available colors and performance results vary by product and process.
