By INKBANK R&D Team
A sample can print. A production line has to keep printing.
That was the practical question behind INKBANK's technical exchange at RICOH's first "Golden Print Week" (金印周) in Shanghai, held alongside All in Print 2026. The event brought industrial printing technology, printhead development and application expertise into the same room. For INKBANK, the most useful part was not a general discussion about compatibility. It was the chance to examine what compatibility must prove when an ink moves from a laboratory sample to continuous production.
The answer is not a single specification. It is a system.
RICOH's first Golden Print Week in Shanghai.
RICOH's "Golden Print Week" took place at the RICOH Shanghai Innovation Experience Center during All in Print 2026. INKBANK was invited to join the event and exchange technical perspectives with the RICOH Shanghai team and other industry participants.
The conversations focused on a problem that every industrial inkjet user recognizes:
An ink may produce a good sample on day one. Three weeks later, the same combination can show missing nozzles, color drift, unstable drop placement or an increase in maintenance. In many cases, the ink itself has not suddenly become defective. The operating window of the whole system has changed.
This is why the phrase "deep collaboration" needs a stricter definition. It should not mean that a supplier has a product listed as compatible. It should mean that the printhead, ink, supply system, print waveform, maintenance process and target application have been validated together.
In industrial inkjet printing, the printhead and ink form one hydraulic and chemical system.
The printhead determines how energy is applied to the nozzle and how a droplet is formed, accelerated and placed. The ink determines how it responds to that energy, how it flows through the supply path, how it behaves at the nozzle plate and how it performs after it reaches the substrate.
That relationship changes with:
Printhead model and generation
Jetting waveform and firing frequency
Ink temperature and viscosity
Nozzle geometry and drop size
Ink circulation, filtration and degassing
Idle time and restart procedure
Substrate, drying or curing conditions
Production speed and environmental conditions
A parameter can pass a laboratory specification while the system still fails in production. Compatibility is therefore not a one-time approval. It is a control loop that must remain stable across time, batches and operating conditions.

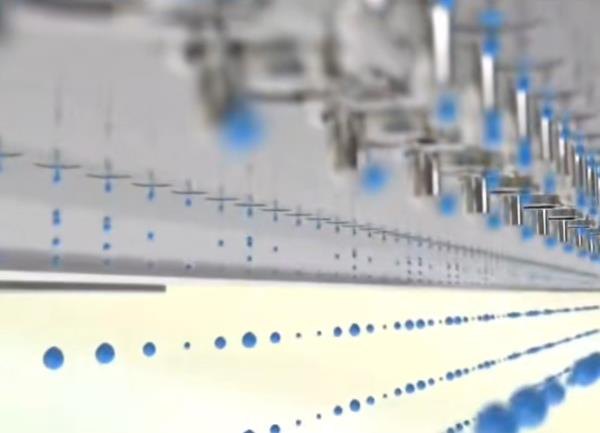

Printhead-level testing makes fluid performance visible.
Before approving an ink for an industrial printhead, buyers should understand four variables and the evidence behind them.
| Variable | What it affects | Typical failure when it is outside the operating window | Evidence to request |
|---|---|---|---|
| Viscosity | Flow through the nozzle and the printhead's ability to eject a stable droplet at the required frequency | Weak ejection, missing nozzles, satellite droplets, poor edge quality or nozzle-plate wetting | Target value, measurement temperature, acceptable range and viscosity-temperature curve |
| Surface tension | Droplet formation, nozzle wetting and drop placement | Poor droplet break-off, scattered dots, nozzle-plate flooding or unstable small dots | Measured value, test method and stability across storage and operating temperature |
| Particle size distribution | Whether pigment or dispersed particles can pass through the nozzle channel without accumulation | Gradual blockage, pressure increase, missing nozzles and reduced printhead life | D50, D90, measurement method and batch-to-batch trend |
| Chemical and pH stability | Interaction with printhead materials, seals, adhesives, filters and the ink supply path | Corrosion, swelling, sedimentation, gel formation or long-term drift | Accelerated aging, pH trend, material compatibility and storage stability data |
These variables do not operate independently. An ink with acceptable viscosity may still perform poorly if its particle distribution is unstable. A stable dispersion may still fail if the supply system creates excessive shear or if the printhead sits idle with the wrong maintenance procedure.
That is why an ink specification sheet is necessary but not sufficient.
Most production failures are not instant. They develop.
A particle that passes through a nozzle once may still accumulate over weeks. A viscosity value that is inside a broad range may still shift enough to change small-dot formation. A pH change that looks minor in a storage report may interact with a seal or adhesive over months. An ink that recovers after a short pause may not recover after a weekend or a seasonal production shutdown.
The production result is also influenced by variables outside the ink formula:
The printhead waveform may be optimized for one drop size and duty cycle.
The ink supply system may introduce different pressure, flow or temperature conditions.
Filters and dampers may change the effective particle profile reaching the nozzle.
Environmental humidity may change solvent evaporation at the nozzle plate.
A cleaning routine may hide a developing issue during short runs but fail during high-volume production.
This is where collaboration between an ink manufacturer and a printhead technology provider creates value. The goal is not to exchange general specifications. The goal is to align test conditions, understand failure modes and define evidence that both sides accept.

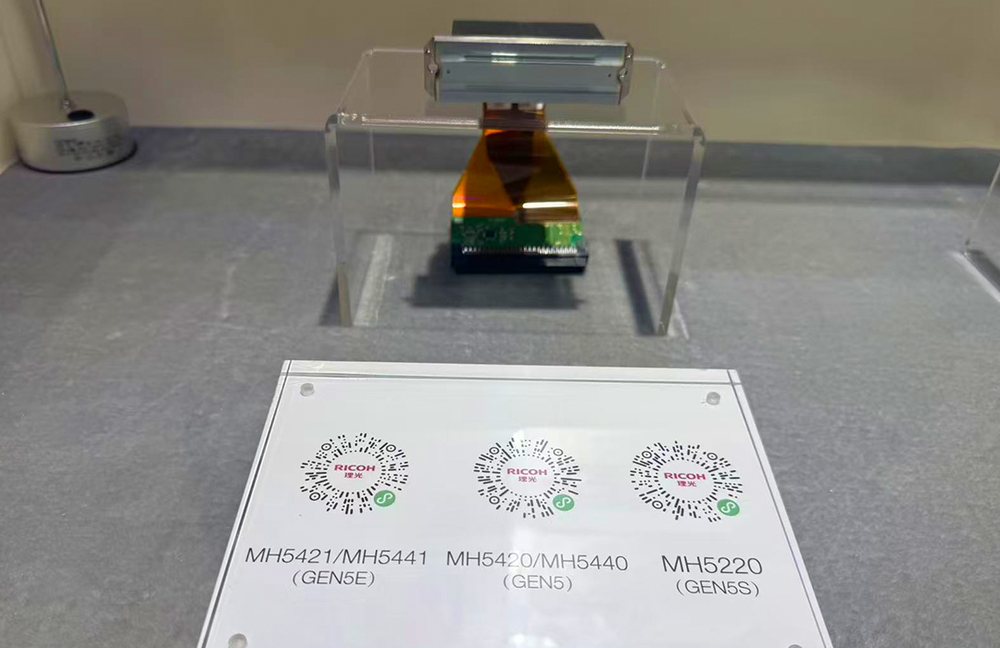

Printhead technology and application requirements were reviewed together.
At RICOH's "Golden Print Week," the discussion centered on parameter matching and the practical conditions that influence printing stability. INKBANK brought its experience across advertising, textile, packaging and label, building and decoration, PCB and functional ink applications. The event also created a useful reminder for buyers:
The value of a printhead-ink partnership is not the claim. It is the test method behind the claim.
An effective technical exchange should answer questions such as:
What printhead model or generation is being used?
What waveform, firing frequency and duty cycle will be applied?
At what temperature will the ink be circulated and jetted?
What is the target substrate and final performance requirement?
What failure mode is being tested: clogging, drop placement, color drift, adhesion or printhead life?
What evidence is recorded before and after the test?
What batch tolerance is acceptable when the product moves into routine supply?
These questions turn "compatibility" from a marketing statement into an engineering program.
A sample test is the beginning of production validation.
For equipment makers, print factories and distributors evaluating an ink, a structured validation process is more useful than a single demonstration.
Printhead operating data -> Ink formulation and fluid design -> Production-like sample test -> Continuous-run and idle-recovery test -> Batch consistency review -> On-site production approval
Each step should produce a record that can be reviewed later.
| Step | Key question | Evidence to capture |
|---|---|---|
| 1. Define the printhead operating window | What are the real waveform, frequency, temperature and maintenance conditions? | Printhead model, firmware or waveform settings, operating temperature and duty cycle |
| 2. Define the application | What substrate, color target and durability requirement must be met? | Substrate sample, target color, curing or drying conditions and acceptance criteria |
| 3. Establish the ink baseline | What are the critical fluid and dispersion properties? | Viscosity, surface tension, particle size, pH and filtration data |
| 4. Run a production-like print test | Does the result hold under the intended speed and print pattern? | Print samples, nozzle-check records, drop-placement observations and printhead condition |
| 5. Stress the system | What happens after idle time, restart, continuous operation and a new batch? | Before-and-after nozzle checks, restart behavior, continuous-run records and batch comparison |
| 6. Approve and monitor | What must stay controlled after the first order? | Approved specification, batch tolerance, storage conditions and incoming inspection plan |
The most expensive mistake is to approve an ink after a short demonstration, then discover during a busy production period that the system has no margin.
The following questions are useful for any industrial ink evaluation, whether the application is advertising, textile, packaging, decoration or electronics.
Which exact printhead model and generation will the ink be used with?
What is the expected ink temperature and viscosity at jetting conditions?
What is the surface-tension target, and how was it measured?
What are the D50 and D90 particle sizes, and how do they change during storage and circulation?
What evidence exists for chemical compatibility with the nozzle plate, adhesives, seals and filters?
How does the ink behave after idle time, restart, continuous operation and a batch change?
What batch-to-batch tolerance is guaranteed, and how will production compliance be monitored?
Answers should include test conditions and measurement methods. A supplier that only replies with adjectives has not provided evidence.
| Question | Strong evidence | Weak answer |
|---|---|---|
| Is the ink suitable for my printhead? | Model-specific test record, operating conditions and known limits | "Our ink works with all industrial printheads" |
| Is the ink stable during production? | Continuous-run and idle-recovery data with nozzle-check results | "Customers do not report problems" |
| Will the next batch perform the same? | Defined viscosity, particle-size and color tolerance with batch trend | "Production is very consistent" |
| Will it work on my substrate? | Application test on the actual material and finish | A sample printed on a different substrate |
| Can we solve a failure quickly? | Named technical contact, diagnostic method and escalation process | General customer-service email only |
The final application determines which validation conditions matter.
The same printhead can face very different stress conditions depending on the final application.
The ink must maintain nozzle stability at high ink laydown while delivering the required outdoor or indoor durability. Print speed, curing and color consistency are often the primary production variables.
Beyond nozzle stability, the ink must work with the fabric, pre-treatment or transfer process and finishing conditions. Color fastness, hand feel, particle stability and compatibility with the production environment all matter.
Adhesion, flexibility, curing, print speed and substrate variation become critical. A result on a rigid sample does not automatically translate to a thin film, coated paper or a high-speed web.
Surface variation, adhesion, weather resistance and color consistency often define success. The validation must include the actual board, film, paper or decorative surface.
Precision, chemical compatibility and interaction with downstream processes are central. The ink must be assessed as part of the functional manufacturing flow, not only as a printing material.
This is why a printhead-level test is a starting point, not the final approval. The last validation must always match the final application.
INKBANK has focused on inkjet ink research and manufacturing for more than 20 years. Its capabilities include 16 research and environmental testing laboratories, more than 500 test printing devices, more than 50 patents and an annual production capacity of over 40,000 tons. Its products serve customers in 100+ countries and regions.
Those resources matter because compatibility questions rarely end with a single formula. They require a test matrix:
Printhead model and operating condition
Ink chemistry and fluid property
Supply system and maintenance procedure
Substrate and post-processing method
Continuous production and batch consistency
The purpose of that matrix is not to make a broader compatibility claim. It is to make each claim narrower, more measurable and more useful to the customer.
If a new ink only works in a demonstration, the production risk has not been solved. If it can be measured, repeated and controlled across batches, it becomes a practical manufacturing decision.
That is the standard INKBANK applies when discussing printhead and ink collaboration: not whether the ink can be jetted once, but whether the result can be validated, repeated and maintained in production.
For a printhead compatibility pre-check, send the printhead model, ink chemistry, application, substrate and current production issue to the INKBANK technical team.
Validate the system before scaling the process.
No. The ability to produce a sample is only the first checkpoint. Production compatibility also requires stable jetting, reliable restart, acceptable maintenance, consistent color and repeatable batch performance.
Printhead generations can differ in nozzle geometry, firing frequency, waveform, materials and ink-supply design. A fluid property that is suitable for one operating window may be less suitable for another.
At minimum, request viscosity at the relevant temperature, surface tension, particle-size distribution, pH or chemical stability data and filtration information. The test method and conditions should be included.
The correct duration depends on the printer, ink chemistry and production schedule. The test should cover the longest realistic idle period in the customer's operation, including restart and nozzle-check evidence.
Gradual particle accumulation, viscosity drift, chemical interaction, ink drying at the nozzle plate or changes in the supply system can all create delayed failures. These problems are usually discovered only through continuous or repeated testing.
Ask for a defined specification and historical batch data for viscosity, particle size, color and other critical properties. The supplier should also explain how out-of-tolerance batches are detected and handled.
No. Laboratory testing reduces risk by controlling variables. Production validation is still required because equipment condition, substrate, environment and maintenance can change the result.
Send the printhead model and generation, ink chemistry, target application, substrate, print speed, operating temperature, current maintenance procedure and a clear description of the problem or target result.
The next step in industrial printing is not a broader promise. It is a more precise proof.
When ink and printhead are treated as one system, compatibility becomes something customers can measure, repeat and trust.
INKBANK. For a Colorful World.
RICOH is a trademark of RICOH Company, Ltd. References to the event and company name are for factual identification only and do not imply endorsement, authorization, certification or a partnership beyond the facts approved in writing.
