Last updated:** 2026-09-16
Author:** INKBANK Technical Team
Category:** UV Printing / Troubleshooting
Reading time:** 12-14 minutes

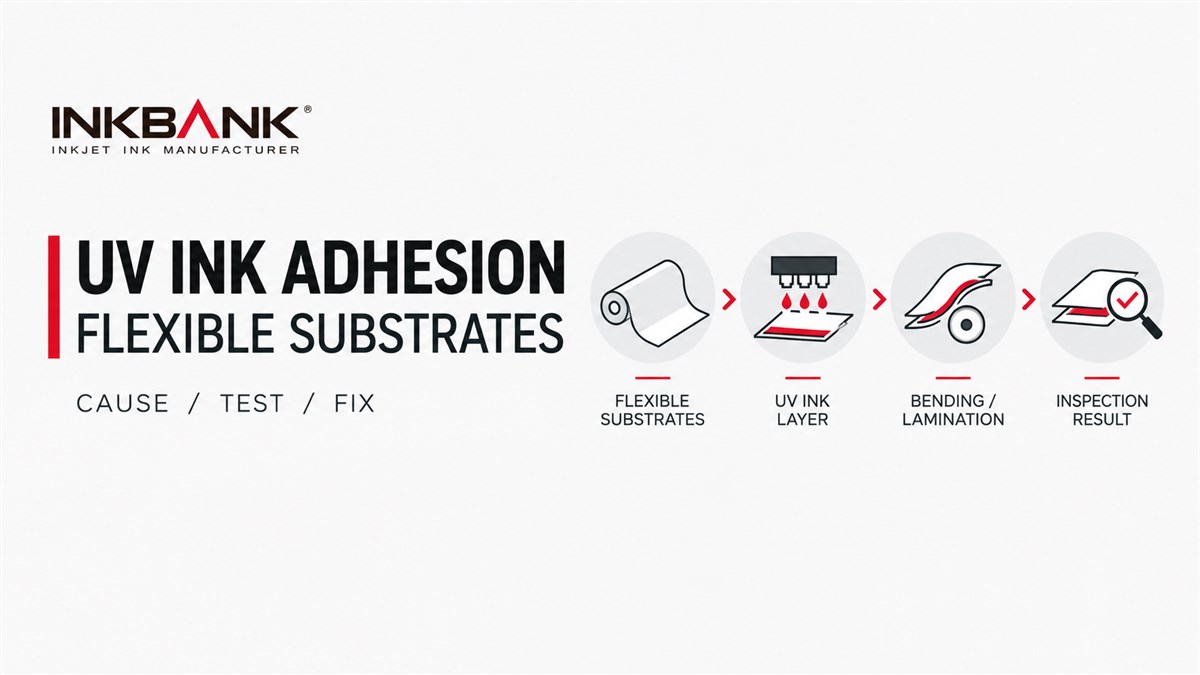

UV ink adhesion on flexible substrates depends on the substrate, ink layer, curing, and end-use stress.
UV ink peels or cracks on flexible substrates when the bond at the ink-film interface fails, the cured ink cannot stretch with the film, or the coating is not fully cured. The fastest diagnosis is to identify the failure plane first, then verify substrate treatment, UV dose, ink flexibility, film thickness, and end-use stress.
This guide is written for label printers, flexible packaging converters, and industrial print teams that need a repeatable way to isolate the cause. It does not assume that changing the ink will solve every failure. A UV adhesion problem can originate in the substrate, the treatment process, the UV-LED curing system, the ink film construction, the downstream lamination, or the mechanical design of the finished product.

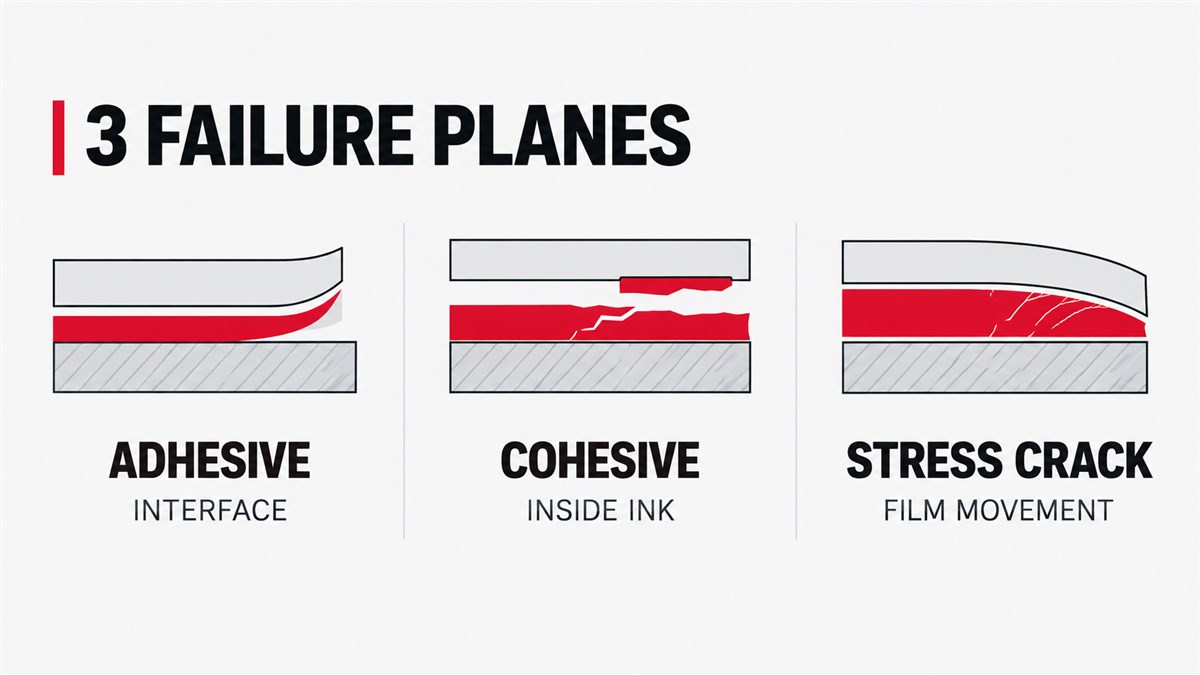

UV ink adhesion failure on flexible substrates usually involves one of three mechanisms: an interface failure, a cohesive failure inside the ink film, or a mechanical mismatch between a cured ink and a film that bends, stretches, shrinks, or deforms. High surface energy alone does not guarantee performance if the ink remains undercured or too brittle for the application.
An effective troubleshooting process must answer two questions:
Where did the coating separate?
What changed the stress or the strength of that interface?
If the ink pulls cleanly from the film, the failure is primarily adhesive. If the ink splits within itself, smears, or remains partly attached to both surfaces, the failure is cohesive. If the print remains bonded but cracks along a fold, crease, or stretch line, the ink film is probably too stiff, too highly crosslinked, too thick, or not matched to the substrate movement.
These failure modes can overlap. An undercured ink may also be brittle if the formulation is wrong for the substrate. A flexible ink may still peel if the film surface is contaminated. That is why changing one setting before locating the failure plane often creates a new problem without solving the original one.
Identify the failure plane by examining both separated surfaces under magnification and recording whether the ink transfers cleanly to the tape, remains on the film, splits within the coating, or cracks without lifting. The location of the residue usually reveals whether the interface, the ink film, or the substrate itself is failing.
Use a low-power microscope, loupe, or high-resolution phone image. Take photographs before and after each test on the same sample. Do not clean the failed edge, because contamination and residue patterns are evidence.
| What you see | Most likely failure plane | What to check first |
|---|---|---|
| Ink transfers completely to tape; substrate is clean | Adhesion failure at the ink-substrate interface | Surface energy, treatment, contamination, primer, wetting |
| Ink remains soft, smears, or splits inside the coating | Cohesive failure | UV dose, wavelength match, oxygen inhibition, film thickness |
| Print stays bonded but cracks at a bend or fold | Stress-induced cracking | Ink elongation, crosslink density, coat weight, bend radius |
| Some ink stays on the substrate and some transfers to tape | Mixed adhesive and cohesive failure | Cure profile plus surface preparation |
| Failure appears after lamination, not before | Interlayer or downstream compatibility issue | Adhesive, topcoat, residual cure, plasticizer migration |
| Failure starts at edges or cut lines | Stress concentration or treatment variation | Edge cure, web tension, die cutting, film shrinkage |
| White or black channels fail more often | Pigment-related cure imbalance | Channel-specific dose, opacity, print order, lamp position |
The failure plane is not the root cause. It narrows the investigation. For example, a clean interface failure points to the substrate surface, but the actual cause may be an expired corona treatment, silicone contamination, an incompatible primer, or insufficient ink wetting.
The failure plane points to the interface, the ink layer, or the effect of film movement.

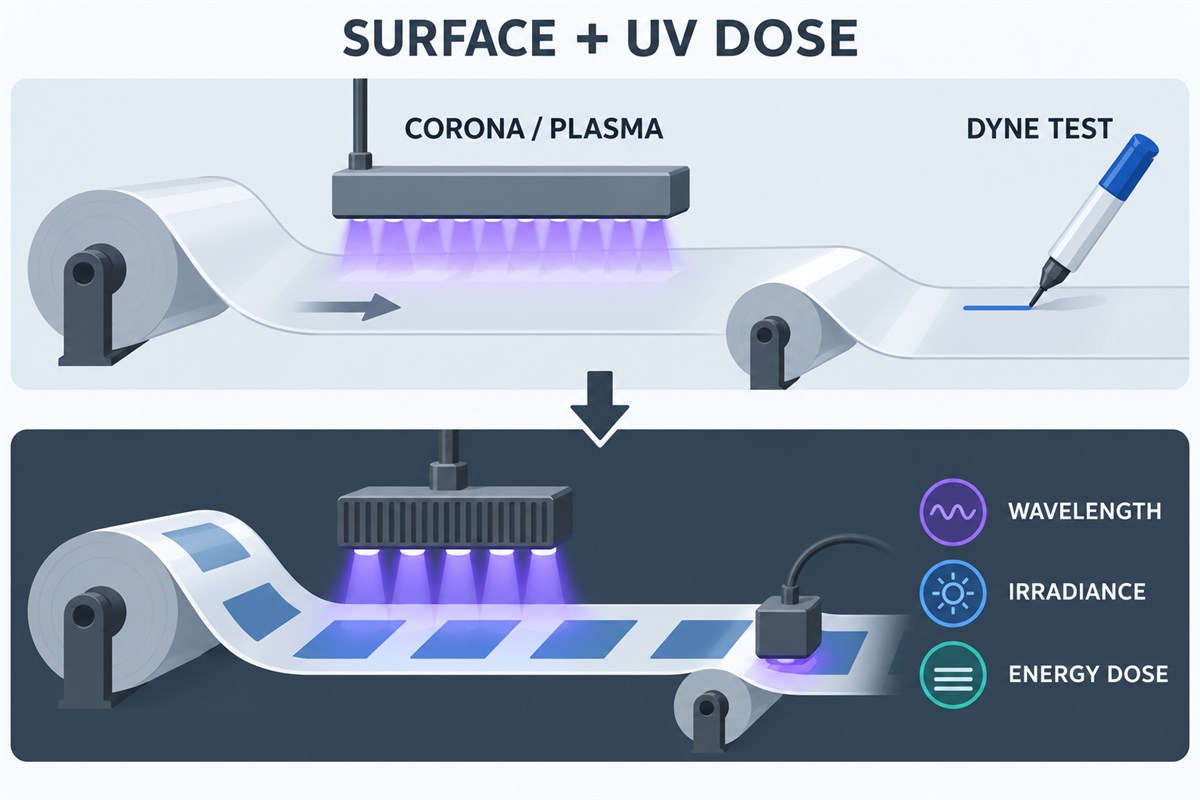

The most common controllable causes are low or inconsistent substrate surface energy, contamination, cure mismatch, excessive crosslink density, incorrect ink film thickness, pigment-specific undercure, and a downstream stress that exceeds the ink's elongation. The highest-risk variable is usually the one that changed most recently.
Polyolefin films such as PE and PP often have low surface energy in their untreated state. PET, PVC, coated papers, metallized films, and specialty label stocks may also require treatment depending on the grade, additives, coating, and age. Corona, plasma, flame treatment, or a suitable primer can raise surface energy and improve wetting.
Treatment is not permanent. Corona effects can decay during storage, slitting, or handling. Surface contamination from silicone, oils, mold release, dust, slip additives, or fingerprints can also lower the effective surface energy even when the incoming roll passed an earlier check.
Do not rely on a single check at goods-in. Test the actual print surface at the print station, or test a representative sample prepared under the same winding and storage conditions. Ask the ink supplier for a target range for the exact ink and substrate combination rather than applying one universal dyne value to every film.
UV-LED inks are formulated for a photopolymerization window. The photoinitiator system must respond to the wavelength emitted by the lamp, and the ink surface must receive enough energy at production speed. Peak irradiance, total energy dose, residence time under the lamp, lamp distance, reflector condition, window cleanliness, and web flutter all affect cure.
A lamp setting such as "80%" is not a transferable cure specification. Different lamp modules, optics, inks, colors, and distances produce different ink-surface conditions. Measure the UV reaching the print at the production plane, at the actual line speed, and record peak irradiance and dose.
Undercure leaves unreacted components and a weak internal film. Overcure can increase crosslink density and brittleness, especially in thin coatings exposed to repeated passes. "More UV" is not automatically better.
Surface preparation and UV dose should be verified as separate process controls.
White ink scatters UV light and often needs a different cure strategy from cyan, magenta, or yellow. Black and other strongly absorbing colors can cure unevenly through the film thickness. A blanket change to line speed or lamp power may fix one channel and damage another.
Evaluate the ink set channel by channel. Record print order, ink laydown, white layer structure, intercolor drying or pinning, and the position of each lamp. If only one channel fails, do not assume the problem is the entire ink set.
A hard, highly crosslinked UV coating may perform well on rigid substrates such as acrylic or metal. On a flexible film, the same coating may crack when the film bends, stretches, shrinks, or conforms to a curved surface.
Flexible UV formulations use different oligomer and monomer systems to balance hardness, adhesion, scratch resistance, and elongation. The correct balance is application-specific. A vehicle wrap that stretches during installation, a shrink sleeve that changes dimension under heat, and a label that receives a mild bend do not require the same ink film properties.
A thick ink layer increases internal stress and makes through-cure more difficult. Multiple passes, heavy white layers, spot varnish, raised effects, and overprint varnishes can also build a multilayer structure that behaves differently from the base color layer.
Thin films are not automatically safe either. If the coating is starved or uneven, the interface can be weak and the print may show mottling, low opacity, or inconsistent adhesion. Optimize wet laydown for the target opacity and cure window rather than assuming that thicker ink equals a stronger print.
The printed film may pass an initial tape test and still fail after lamination, rewinding, die cutting, thermal exposure, or application. Lamination adhesive, topcoat chemistry, residual uncured components, plasticizer migration, and film shrinkage can change the stress at the interface.
Test the full finished structure, not only the printed web. A UV ink that performs well as a surface print may be the wrong choice under a particular adhesive or protective film.
Temperature, humidity, UV exposure, chemical contact, cold bending, thermal cycling, sterilization, and mechanical flexing can all change adhesion over time. A print may appear acceptable immediately after curing and then fail after the ink continues to cure, the film relaxes, or the adhesive migrates.
Define the worst realistic end-use condition before selecting a test. Testing only at 23°C and 50% relative humidity may not represent a cold-chain label, a heated shrink process, or an outdoor application.

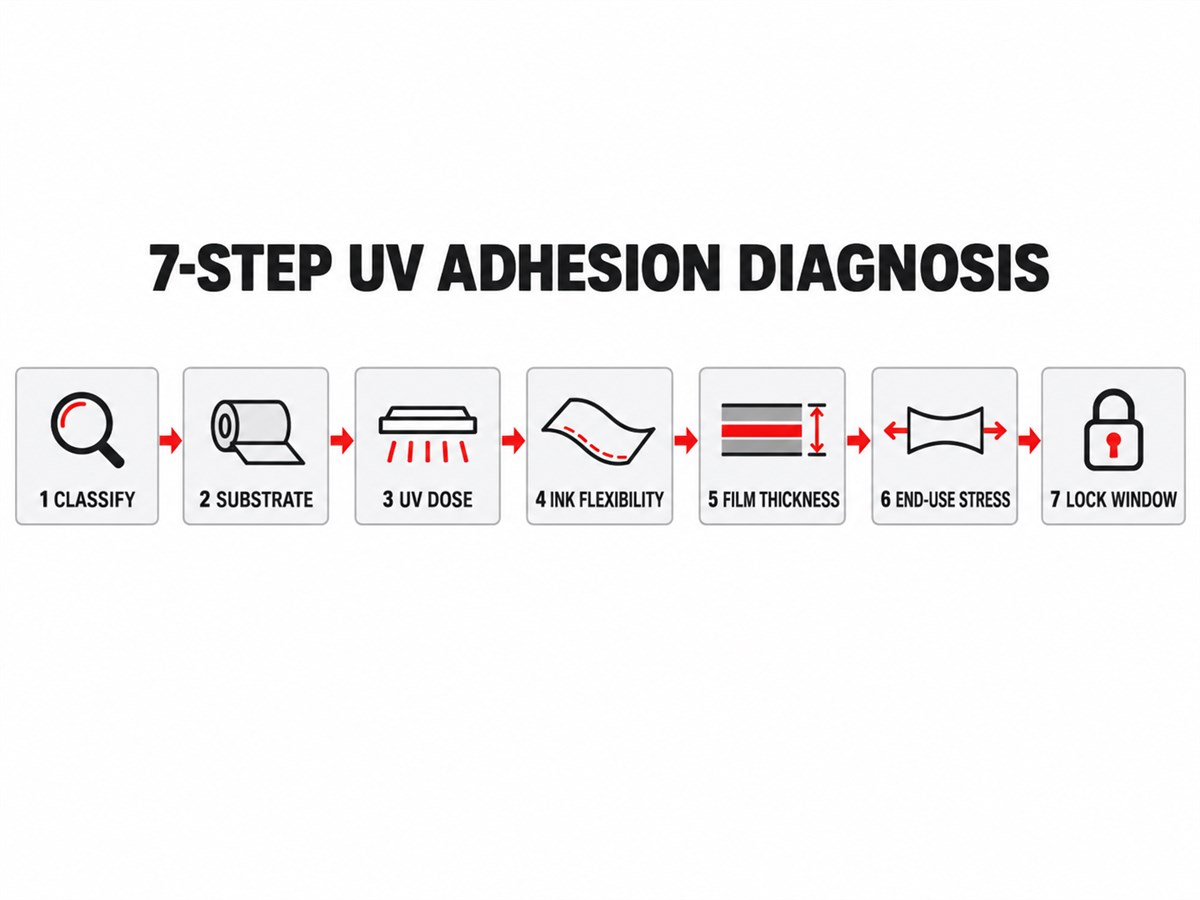

Start with a controlled sample and change one variable at a time. Confirm the failure plane, audit the substrate, verify ink-surface UV dose, review ink flexibility and coating weight, reproduce the end-use stress, and document the operating window. This sequence prevents random parameter changes from hiding the real cause.
Record the substrate grade, thickness, supplier lot, treatment method, treatment age, ink lot, printhead, waveform, drop size, pass count, lamp model, wavelength, measured irradiance and dose, line speed, ambient conditions, and downstream process. The goal is a reproducible baseline, not a general description such as "normal settings."
Run a tape or cross-cut test before cleaning the sample. Photograph the substrate and tape. Use a bend, crease, or mandrel test on a separate sample. Record whether the failure is adhesive, cohesive, stress-induced, or mixed.
Check surface energy or contact angle at the print position. Confirm that the treatment is uniform across the web width and repeatable from roll to roll. Inspect for silicone, oil, powder, slip additives, and handling contamination. If a primer is used, verify its coverage and compatibility with both the film and the ink.
Measure UV at the ink surface with the production geometry. Check lamp windows, reflectors, cooling, lamp age, and distance. Compare each color channel. If the ink remains tacky, smears, or splits internally, investigate undercure first. If the print is hard and cracks at low elongation, investigate overcrosslinking or a rigid formulation.
Compare the ink's elongation and flexibility with the film's actual deformation in the finished product. Check coat weight, white layer build, varnish, and lamination. Reduce unnecessary ink thickness and simplify the layer structure where possible.
Test at the real bend radius, stretch percentage, shrink condition, temperature, humidity, and chemical exposure. Inspect immediately and after a defined aging period. If the failure appears only after 24 hours, record the change rather than treating the initial result as final.
Once a combination passes, define the allowable ranges for substrate treatment, UV dose, line speed, ink laydown, and post-treatment. Re-qualify when the film grade, ink lot, adhesive, lamp module, or end-use condition changes. Adhesion is a process capability, not a one-time approval.
Use a repeatable sequence and change one variable at a time.

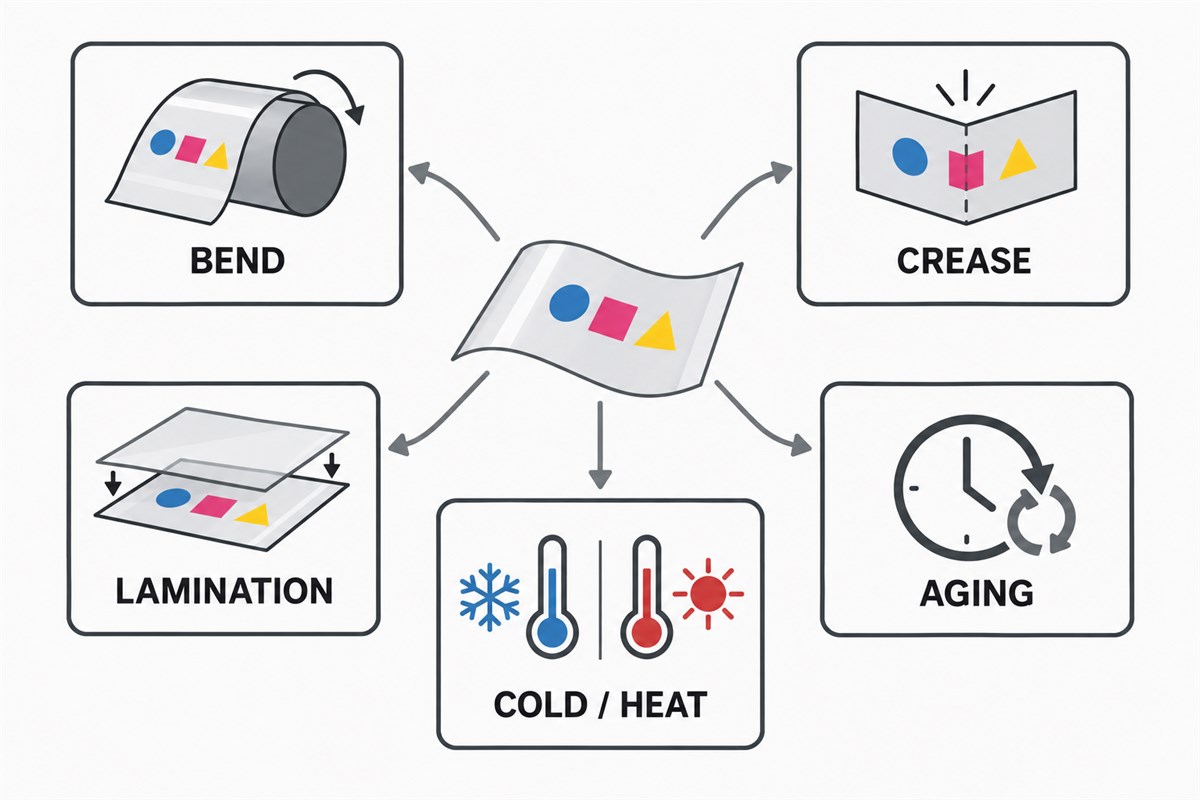

Select test methods that reproduce the actual bend, crease, lamination, aging, and temperature conditions.
Use tests that match the failure mechanism and end-use stress. Cross-cut and tape tests help reveal interface adhesion, bend or mandrel tests reveal flexibility, solvent rub tests reveal cure and chemical resistance, and application-specific aging tests reveal delayed delamination. A standard defines the method, not the pass limit.
| Test | What it helps reveal | Important limitation |
|---|---|---|
| Cross-cut or cross-hatch tape test, such as ISO 2409 or ASTM D3359 | Interface adhesion and coating cohesion | Cut depth, film deformation, and operator technique can affect results |
| Manual tape pull on an uncut print | Gross adhesion loss | Less repeatable than a standardized method |
| Cylindrical mandrel or bend test, such as ISO 1519 or ASTM D522 | Cracking and flexibility at a defined bend radius | Must approximate the real application radius and direction |
| Repeated fold or crease test | Cracking at converting or end-use folds | Not a universal pass/fail test; correlate with customer requirements |
| Tensile and elongation test of the substrate, such as ASTM D882 | Film movement relative to ink capability | Measures the film, not the cured ink film by itself |
| Solvent rub, such as ASTM D5402 | Cure level and resistance to a defined solvent | Solvent, cloth, pressure, and cycle count must be controlled |
| Abrasion or rub test | Surface durability after cure | Does not replace adhesion testing |
| Peel or lamination test based on the actual structure | Interlayer adhesion after lamination | Adhesive and liner variables can dominate the result |
| Heat, humidity, cold, and cycling tests | Delayed adhesion loss | Use conditions that represent the real product, not arbitrary extremes |
Keep a control sample printed with a known-good ink and process. Without a control, a result such as "3B" or "pass" has little diagnostic value. Record the test method, sample orientation, environmental condition, aging time, operator, and equipment.
Choose a flexible UV ink by matching four things: substrate surface, cure window, mechanical movement, and downstream chemistry. Ask the supplier to specify the intended substrate family, pretreatment requirement, recommended cure window, elongation and flexibility targets, printhead compatibility, and any lamination or food-contact limitations.
Use this checklist before a bulk trial:
| Question | Why it matters |
|---|---|
| Is the ink designed for flexible or rigid substrates? | A rigid formulation may be too brittle for film movement |
| Which film grades and thicknesses were validated? | "PET" or "BOPP" is too broad when grades and coatings vary |
| Is surface treatment or a primer required? | The ink cannot compensate for a weak or contaminated surface |
| What cure wavelength and dose range should be used? | The formulation and lamp must match, not only the lamp power setting |
| What is the recommended wet and cured film thickness? | Excess thickness increases stress and can reduce through-cure |
| How does each color channel cure? | White, black, and clear layers can behave differently |
| Is the ink compatible with the intended lamination or topcoat? | A surface-print ink may not suit a laminated structure |
| What mechanical test represents the application? | A label bend, shrink sleeve, and stretch film need different limits |
| What batch documentation is available? | Lot traceability and specifications support repeatability |
| Does the supplier provide trial support? | A line trial is the only reliable proof for the full process |
A useful supplier trial records the exact material, machine, cure, and end-use conditions, then compares the candidate ink against a control. It should produce a process window, not only a set of printed samples.
Document at least:
Substrate supplier, grade, thickness, lot, coating, liner, and treatment age
Pretreatment method and measured surface condition
Printer, printhead model, waveform, drop size, resolution, and pass count
Ink product, lot number, color channel, and shelf-life status
Lamp model, wavelength, distance, irradiance, energy dose, and line speed
Ambient temperature and relative humidity
Print order, white-layer structure, varnish, and lamination
Immediate adhesion and flexibility results
End-use stress tests and aging period
Failure-plane photographs before and after testing
Recommended operating window and variables that require re-qualification
The ink may not be the root cause when the film lot or treatment changes, the substrate surface is contaminated, the curing system has drifted, the lamination adhesive is incompatible, or the end-use deformation exceeds the film and coating design. Replacing ink without controlling these variables can repeat the same failure with a new product.
Common non-ink causes include:
An untreated or inconsistently treated film batch
Corona treatment that has decayed during storage
Silicone, oil, slip additive, powder, or release contamination
A dirty UV window, degraded lamp, wrong wavelength, or changed lamp distance
A film grade or thickness change that alters stiffness and heat transfer
An overbuilt white layer, varnish, or raised print area
An incompatible lamination adhesive or topcoat
A shrink, stretch, fold, or cold-bend requirement beyond the selected ink's capability
INKBANK manufactures flexible UV-LED curable inks and label UV-LED inks for industrial digital printing applications. The company operates 16 R&D laboratories and more than 500 test printers, with ISO 9001 and ISO 14001 management systems. Its UV ink portfolio includes GREENGUARD GOLD certification, while applicable products are REACH and RoHS compliant.
For a substrate-specific evaluation, send the technical team:
Substrate type, grade, thickness, and treatment information
Printer and printhead model
UV-LED lamp wavelength and curing setup
Current ink and process settings
Lamination, converting, or end-use requirements
Photos showing whether the failure is peeling, cracking, smearing, or mixed
The goal of the trial is to narrow the formulation and process direction before production. Final approval should always be based on tests performed on your own substrate, printer, curing system, and downstream process.
UV ink usually peels from flexible plastic when the ink-substrate interface is weaker than the stress applied to it. Common causes include low surface energy, missing or aged corona treatment, contamination, insufficient wetting, undercure, an incompatible primer, or a downstream lamination condition that changes the interface.
Cracking at a bend usually means the cured ink cannot elongate as much as the film. The cause may be a rigid ink formulation, excessive crosslink density, over-cure, too thick an ink layer, a bend radius smaller than the tested condition, or a film that shrinks or stretches during use.
Yes. More UV energy can increase crosslink density and make the coating harder and more brittle. It can also add internal stress. The correct target is a controlled cure window that balances adhesion, cohesion, flexibility, scratch resistance, and chemical resistance.
No. Corona treatment can raise surface energy, but it will not remove silicone or oil contamination, repair an incompatible primer, solve undercure, or make a rigid ink flexible. Treat the film correctly, verify the result at the print position, and still test the complete ink and downstream structure.
Start with a documented tape or cross-cut test, then add a bend, crease, or mandrel test that represents the application. Test immediately and after an appropriate aging period. Use a control print and record the method, substrate, cure condition, operator, and test environment.
There is no single universal cause, but surface condition and cure control account for a large share of production failures. A change in film treatment, contamination, lamp output, line speed, ink laydown, or downstream adhesive can cause delamination even when the ink formula itself has not changed.
Not usually. Rigid and flexible applications require different balances of hardness, adhesion, elongation, and internal stress. A formulation optimized for acrylic, glass, or metal may crack on a film, while a highly flexible ink may not meet the scratch or chemical resistance requirements of a rigid application.
Test immediately to capture the production result, then repeat after the ink has equilibrated and the film has relaxed. If performance improves or declines after 24 hours, record it. The final acceptance limit should reflect the product's actual handling and aging timeline.
Yes. Lamination can add heat, pressure, adhesive chemistry, or solvent exposure. It can also reveal residual uncured components, plasticizer migration, or an incompatible topcoat. Test the finished laminated structure rather than approving the ink on the printed web alone.
Provide the substrate grade and treatment, printhead, UV-LED wavelength and cure setup, line speed, ink laydown, current failure photos, and the final bend, stretch, shrink, lamination, or chemical requirements. A recommendation without these variables is only a starting point, not a validated solution.
UV ink peeling and cracking on flexible substrates is a process problem with several possible owners. The efficient route is to identify the failure plane, measure the substrate and cure conditions, compare the ink's flexibility with the film's real movement, and test the complete finished structure.
Changing ink can be the correct answer, but only after the relevant variables are known. A flexible UV ink must match the substrate, the UV-LED curing system, the printhead, the downstream process, and the end-use stress.
Need help reviewing a UV adhesion failure? Send your substrate, printhead, UV-LED setup, current settings, and failure photos to INKBANK. Our technical team can help define a structured trial and recommend the appropriate flexible or label UV-LED ink direction.
